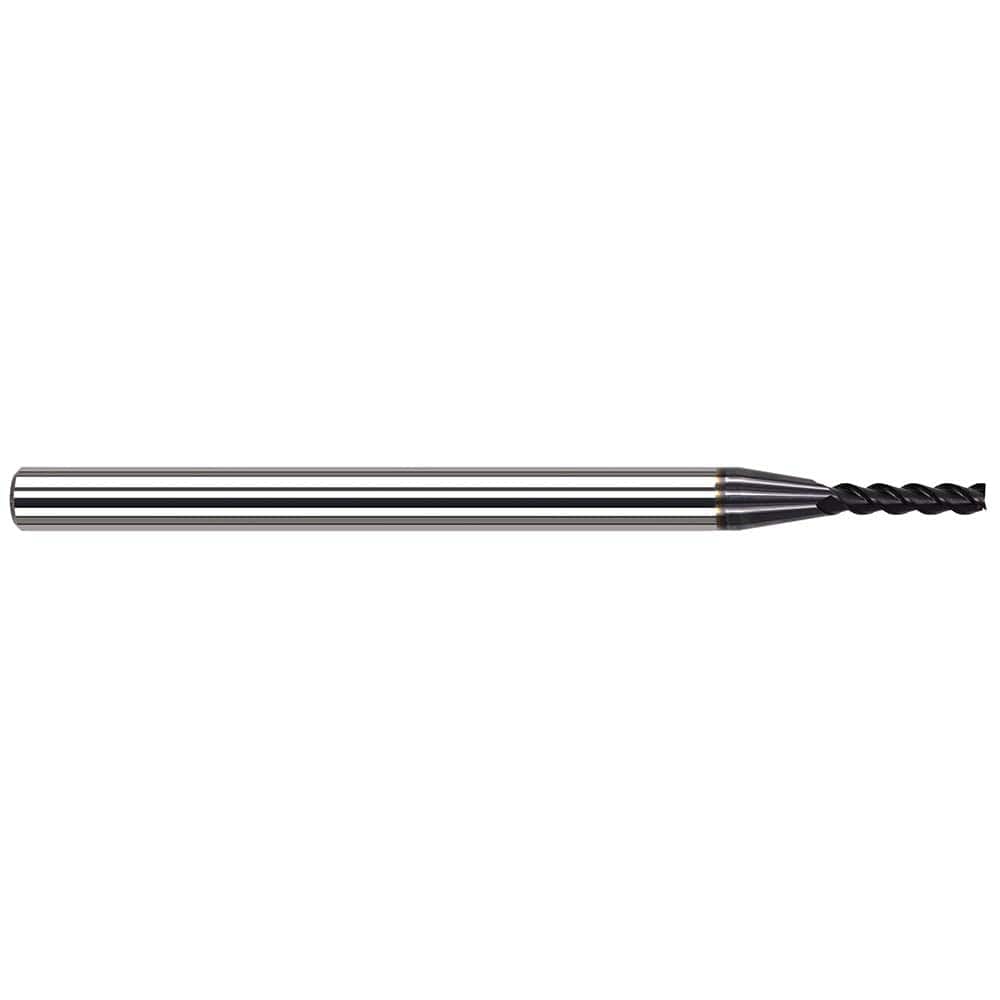

Corner Radius End Mill: 3/64″ Dia, 3/16″ LOC, 0.005″ Radius, 3 Flutes, Solid Carbide 2-1/2″ OAL, 1/8″ Shank Dia, 34 ° Helix, AlTiN Nano Coated, Corner Radius End, Centercutting
Item #: 16726143
Brand: Harvey Tool
Model #: 796747-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0470 |
| Mill Diameter (Inch) | 3/64 |
| Mill Diameter (mm) | 1.20 |
| Length of Cut (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0050 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 34 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 2-1/2 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Single Or Double End | Single |
| Coating/Finish | AlTiN Nano |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1870 |
