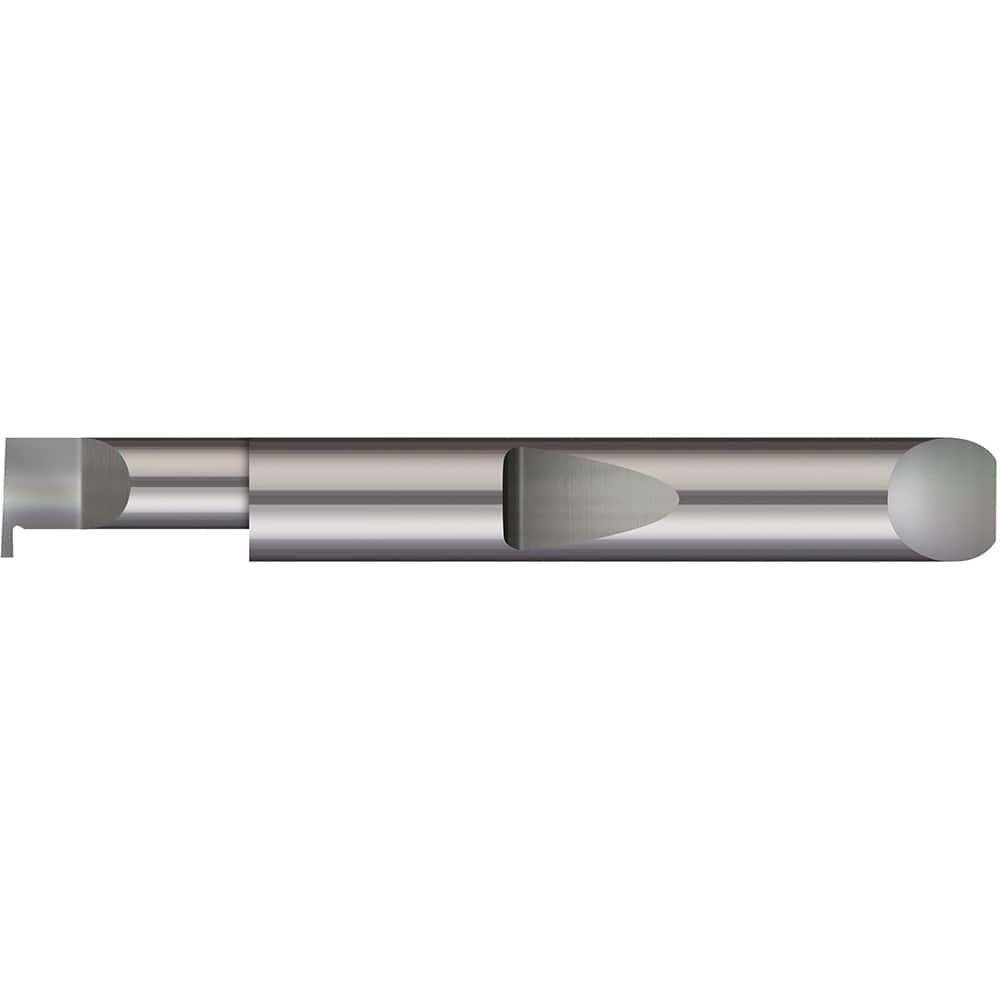

Micro 100 - 0.02" Groove Width, 0.12" Min Bore Diam, 0.15" Max Hole Depth, Retaining Ring Grooving Tool
Item #: 16698243
Brand: Micro 100
Model #: QRR-020-150-120
Product Specifications
| Grooving Tool Type | Retaining Ring |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Groove Width (Decimal Inch) | 0.0200 |
| Projection (Decimal Inch) | 0.0300 |
| Maximum Hole Depth (Decimal Inch) | 0.1500 |
| Overall Length (Decimal Inch) | 1.50000 |
| Overall Length (Inch) | 1-1/2 |
| Finish/Coating | Uncoated |
