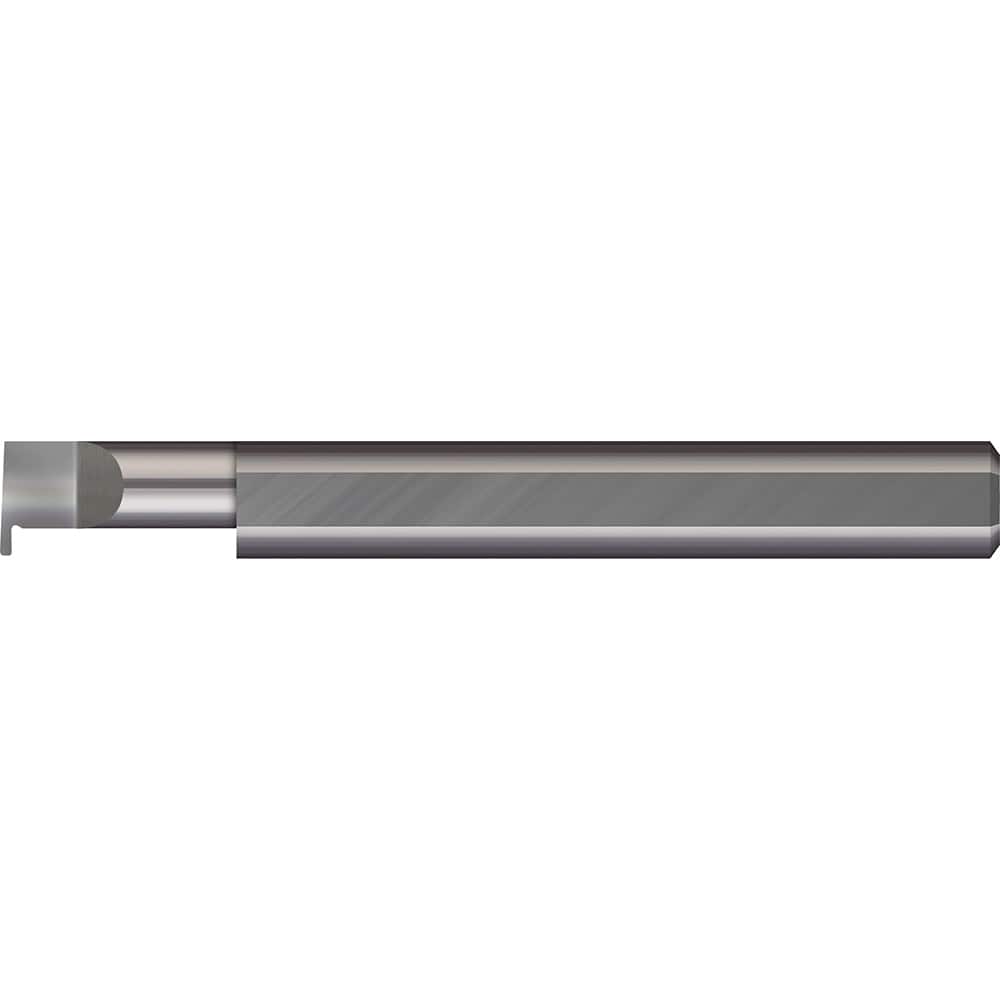

Micro 100 - 0.025" Groove Width, 1/4" Min Bore Diam, 3/8" Max Hole Depth, Retaining Ring Grooving Tool
Item #: 16695850
Brand: Micro 100
Model #: RRC3025375250
Product Specifications
| Grooving Tool Type | Retaining Ring |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Groove Width (Decimal Inch) | 0.0250 |
| Projection (Decimal Inch) | 0.0500 |
| Maximum Hole Depth (Decimal Inch) | 0.3750 |
| Maximum Hole Depth (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 2.50000 |
| Overall Length (Inch) | 2-1/2 |
| Finish/Coating | Uncoated |
| Radius (Decimal Inch) | 0.0030 |
