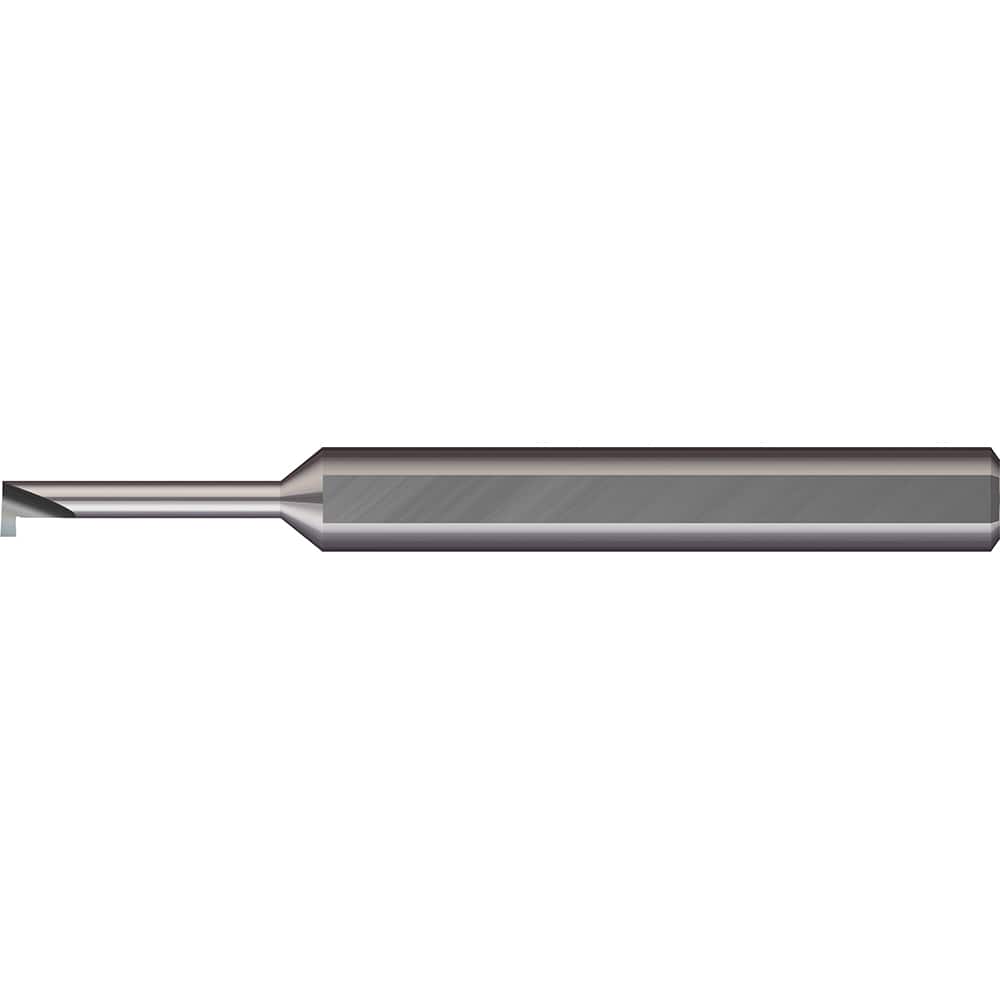

Micro 100 - 0.02" Groove Width, 0.08" Min Bore Diam, 1/4" Max Hole Depth, Retaining Ring Grooving Tool
Item #: 16694267
Brand: Micro 100
Model #: MRR-020-250-080
Product Specifications
| Grooving Tool Type | Retaining Ring |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Groove Width (Decimal Inch) | 0.0200 |
| Projection (Decimal Inch) | 0.0250 |
| Maximum Hole Depth (Decimal Inch) | 0.2500 |
| Maximum Hole Depth (Inch) | 1/4 |
| Overall Length (Decimal Inch) | 1.50000 |
| Overall Length (Inch) | 1-1/2 |
| Finish/Coating | Uncoated |
