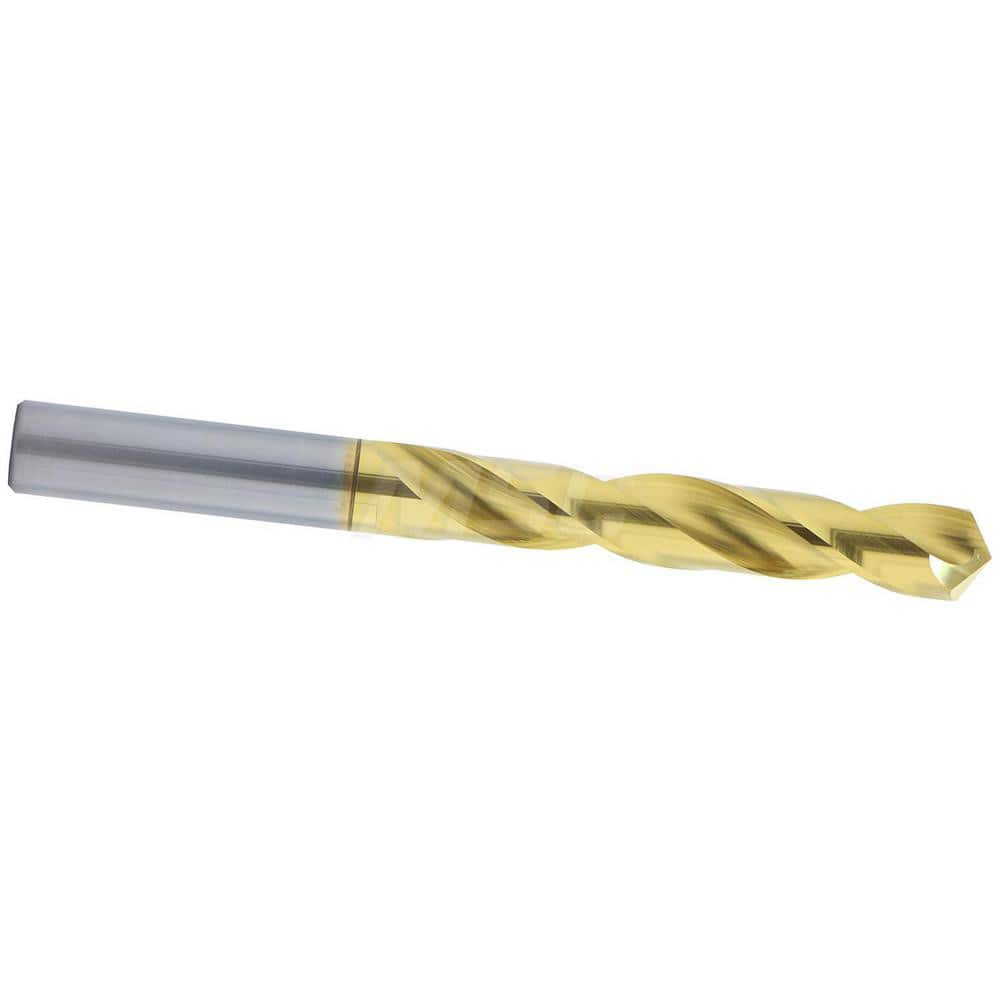

Jobber Length Drill Bit: 0.4375″ Dia, 118 °, Solid Carbide TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 450
Item #: 16692014
Brand: Hertel
Model #: CBDD-51
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.4375 |
| Drill Bit Size (Inch) | 7/16 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiN |
| Drill Point Angle (Degrees) | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (Inch) | 4-1/2 |
| Series | 450 |
| Shank Diameter (Inch) | 7/16 |
| Maximum Drilling Depth (Inch) | 4-1/2 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 in |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Material Grade | C2 |
