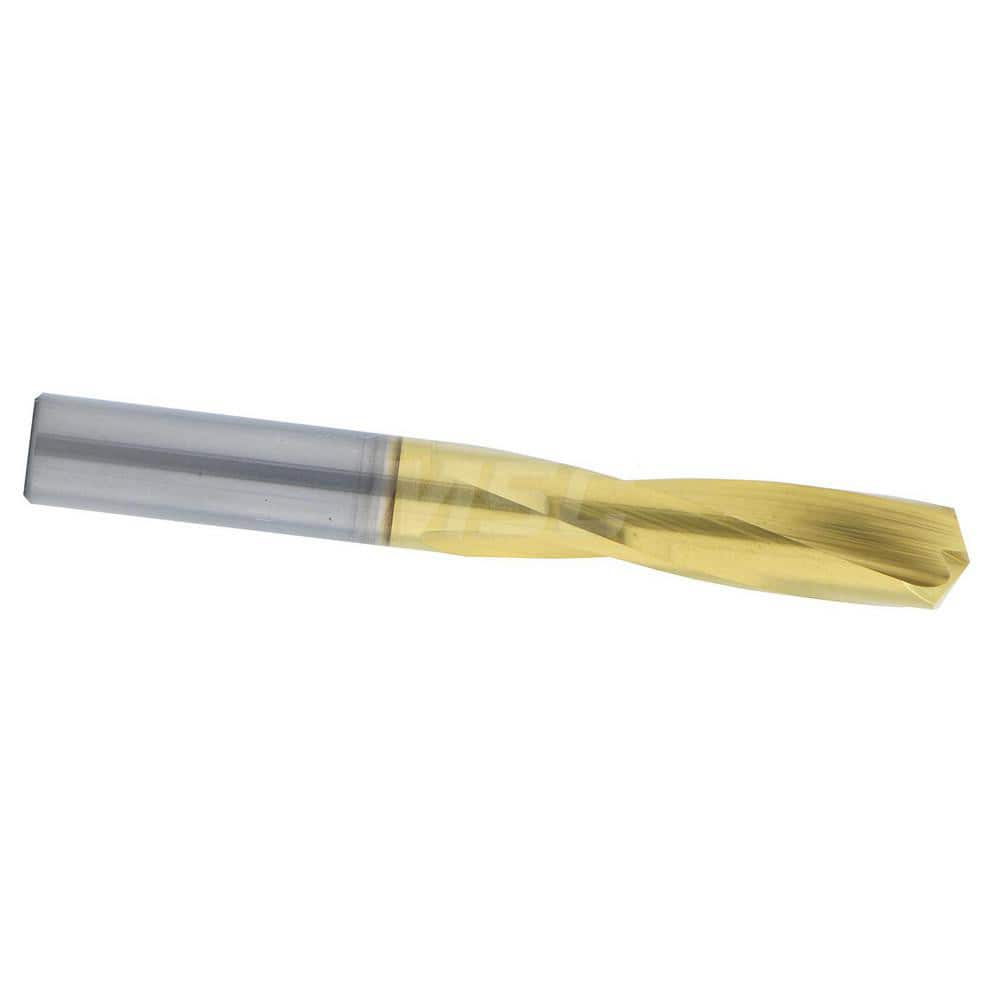

Screw Machine Length Drill Bit: 0.375″ Dia, 135 °, Solid Carbide TiN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 16691875
Brand: Hertel
Model #: CBDD-21
Product Specifications
| Drill Bit Size (Inch) | 3/8 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiN |
| Drill Point Angle | 135 |
| Spiral Type | Slow |
| Flute Type | Spiral |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.3750 |
| Overall Length (Inch) | 3-1/8 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Maximum Drilling Depth (Decimal Inch) | 3.1875 |
| Shank Length (Inch) | 1-5/16 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Flute Length (Inch) | 1-13/16 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Material Grade | C2 |
