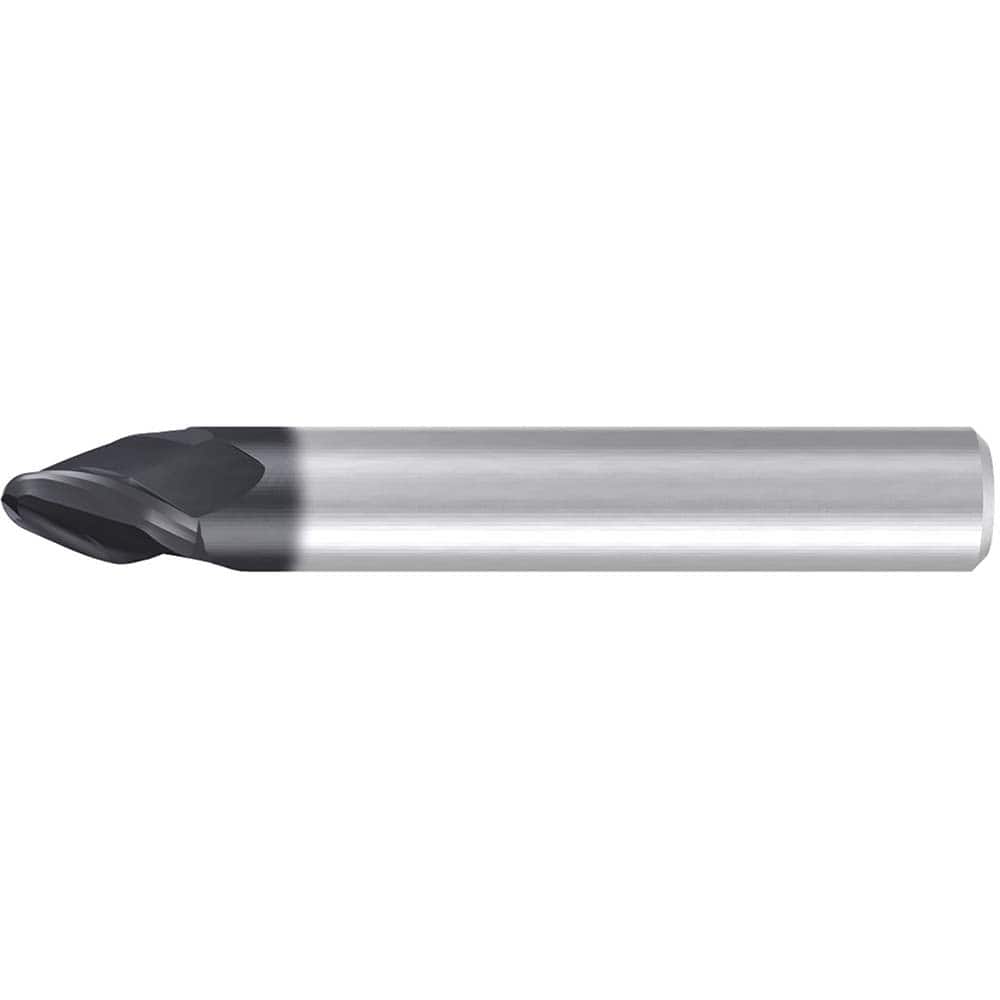

Emuge - Barrel Cutter End Mills; End Type: Circle Segment Taper-Form A ; Material: Solid Carbide ; Taper Angle Per Side: 20.00 ; Small End Diameter (mm): 8.00 ; Shank Diameter (mm): 16.0000 ; Length of Cut (mm): 18.5000
Item #: 16656167
Brand: Emuge
Model #: 3540L.1615AA
Product Specifications
Barrel Cutter End Mills; End Type: Circle Segment Taper-Form A ; Material: Solid Carbide ; Taper Angle Per Side: 20.00 ; Small End Diameter (mm): 8.00 ; Shank Diameter (mm): 16.0000 ; Length of Cut (mm): 18.5000
| End Type | Circle Segment Taper-Form A |
| Material | Solid Carbide |
| Taper Angle Per Side | 20.00 |
| Small End Diameter (mm) | 8.00 |
| Shank Diameter (mm) | 16.0000 |
| Length of Cut (mm) | 18.5000 |
| Length of Cut (Inch) | 0 |
| Number of Flutes | 3 |
| Helix Angle | 30.00 |
| Finish/Coating | AlCr |
| Overall Length (mm) | 108.0000 |
| Flute Type | Spiral |
| Flute Direction | Right Hand |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Series/List | 3540L |
