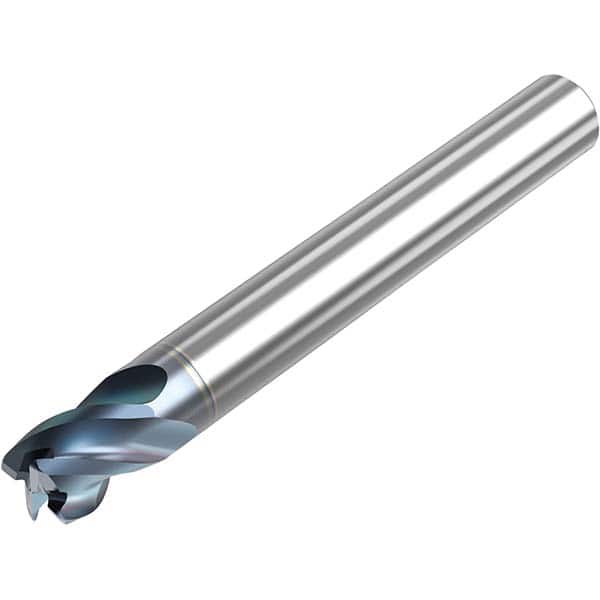

Corner Radius End Mill: 1/8″ Dia, 1/8″ LOC, 0.01″ Radius, 4 Flutes, Solid Carbide 1-1/2″ OAL, 1/8″ Shank Dia, 40 ° Helix, HTA Coated, Corner Radius End, Series STR440.2
Item #: 16455941
Brand: Niagara Cutter
Model #: 10008555
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1250 |
| Mill Diameter (Inch) | 1/8 |
| Length of Cut (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0100 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Length Type | Stub |
| Flute Type | Helical |
| Helix Angle | 40 |
| Shank Type | Straight-Cylindrical |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 0.125 |
| Overall Length (Inch) | 1.5 |
| Overall Length (Decimal Inch) | 1.5000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | STR440.2 |
| Single Or Double End | Single |
| Coating/Finish | HTA |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1250 |
