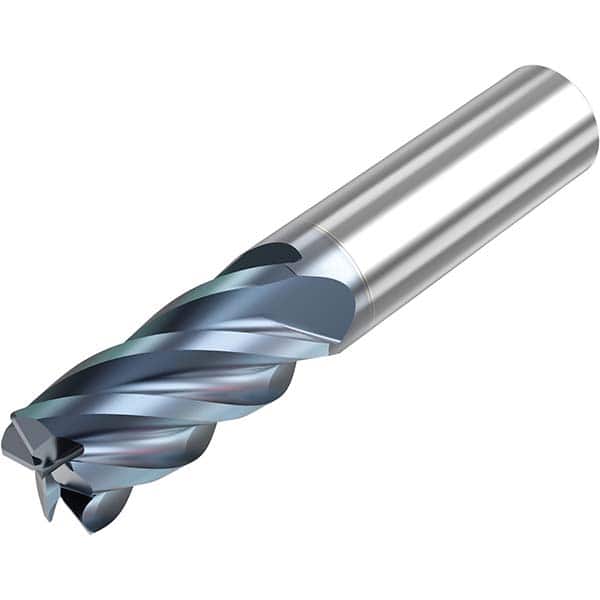

Corner Radius End Mill: 3/4″ Dia, 1-1/2″ LOC, 0.06″ Radius, 5 Flutes, Solid Carbide 4″ OAL, 3/4″ Shank Dia, 40 ° Helix, HTA Coated, Corner Radius End, Centercutting, Series STS540
Item #: 16455396
Brand: Niagara Cutter
Model #: 10008607
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 1-1/2 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Length Type | Short |
| Flute Type | Helical |
| Helix Angle | 40 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | Yes |
| Shank Diameter (Inch) | 0.75 |
| Overall Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 4.0000 |
| Maximum Helix Angle | 40.00 |
| Corner Radius Tolerance | +0.00100 to -0.00100 in |
| Mill Diameter Tolerance | +0.000000 to -0.002000 in |
| Shank Diameter Tolerance | -0.0001 - -0.0004 in |
| Overall Length Tolerance | +0.0600 to -0.0600 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | STS540 |
| Single Or Double End | Single |
| Coating/Finish | HTA |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5000 |
