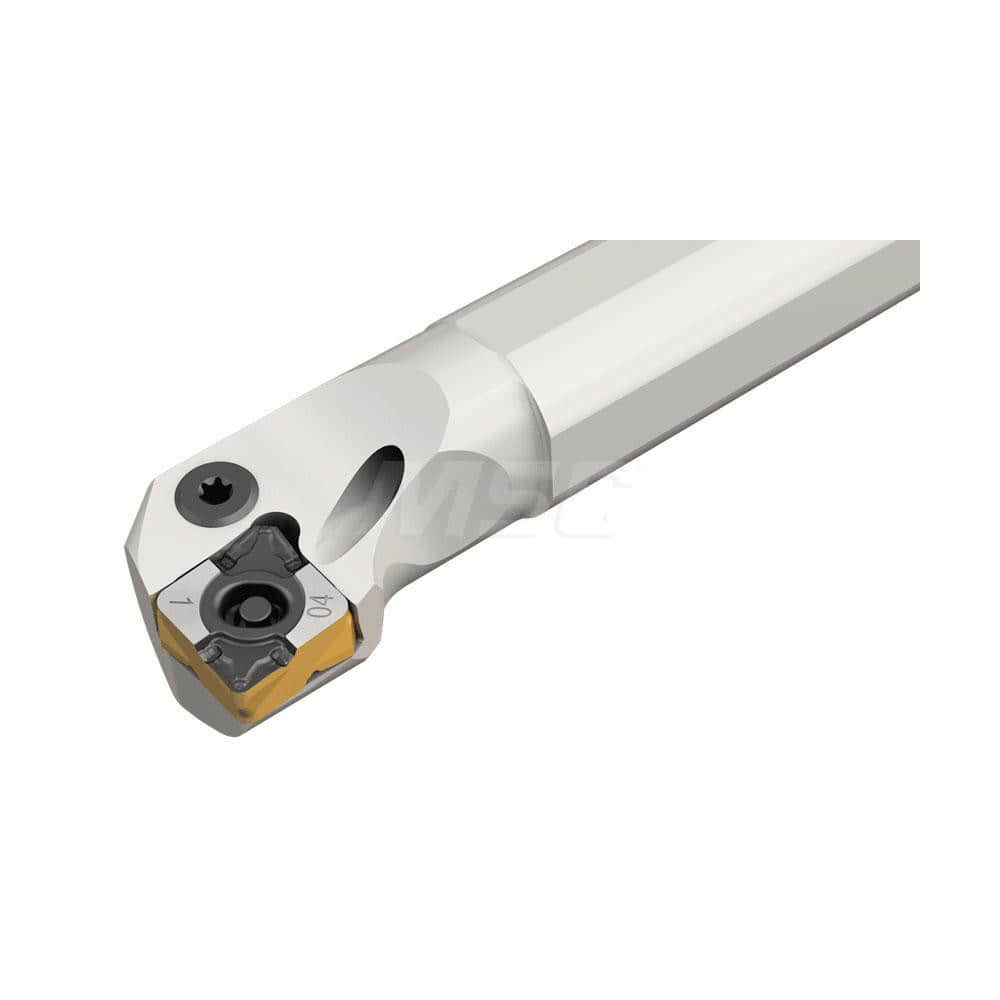

32mm Min Bore, Left Hand A25S PCLXL Indexable Boring Bar 250mm OAL, 25mm Shank Diam, Uses CXMG, A25S PCLXL Inserts, Through Coolant
Item #: 16420366
Brand: Iscar
Model #: 3345202
Product Specifications
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2590 |
| Maximum Bore Depth (mm) | 40.00 |
| Toolholder Style | A25S PCLXL; A25S PCLXR |
| Insert Compatibility | CXMG |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Shank Diameter (mm) | 25.00 |
| Hand of Holder | Left Hand |
| Overall Length (Decimal Inch) | 9.8420 |
| Overall Length (mm) | 250.00 |
| Insert Holding Method | Lever |
| Compatible Insert Shape | Diamond |
| Rake | Positive (Radial); Positive (Axial) |
| Cutting Direction | Left Hand |
| Series | Isoturn |
| Multi-use Tool | No |
| Cutting Tool Application | Turning |
| Center to Cutting Edge (mm) | 17.00 |
| Standards | ISO 13399 |
| Number of Inserts Used on Toolholder | 1 |
| Maximum Bore Diameter (mm) | 100.00 |
| Maximum Bore Diameter (Decimal Inch) | 3.9370 |
| Number of Inserts Included in Order | 0 |
| Coolant Through | Yes |
