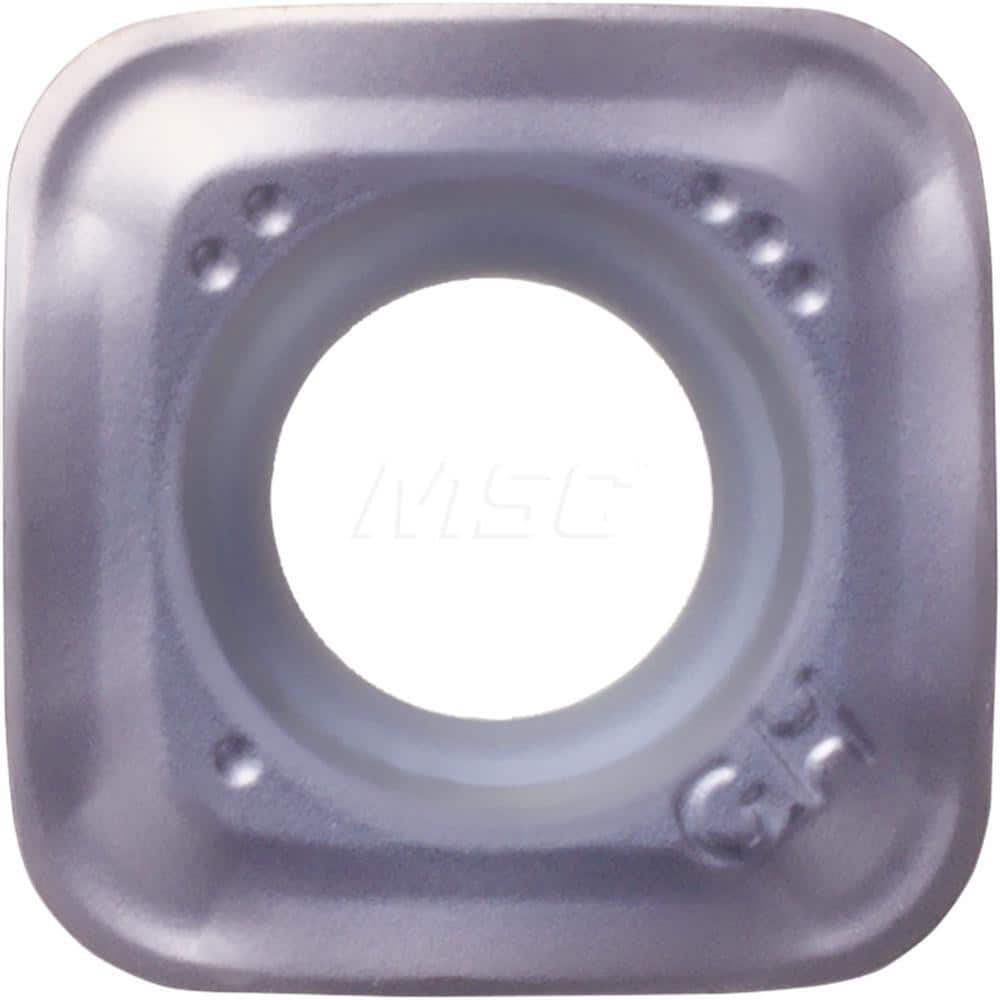

SQ POS TAKE RH Carbide Milling Insert Megacoat Nano Finish, 0.2189″ Thick
Item #: 16391120
Brand: Kyocera
Model #: TLB40005
Product Specifications
| Insert Style | SOMT |
| Insert Size Code | 140520 |
| Insert Size | 140520 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1525 |
| Inscribed Circle (Decimal Inch) | 0.5579 |
| Inscribed Circle (mm) | 14.17 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Insert Hand | Right Hand |
| Relief Angle | 16.00 |
| Series | MFH-Raptor |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.80 |
| Hole Diameter (Decimal Inch) | 0.2283 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Hard Material; Steel |
| Secondary Workpiece Material Code | P; H |
| Ansi Code | SOMT140520ERGHPR1525 |
| Iso Code | SOMT140520ER-GH |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SOMT140520ERGHPR1525 |
| Chip Breaker | ER-GH |
| Shape | Square |
| Insert Holding Method | Screw |
| Thickness (mm) | 5.56 |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5579 |
| Width (Mm - 2 Decimals) | 14.17 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2189 |
 | |
| MSC Part # | 16391120 |
| Mfr Part # | TLB40005 |
| Country of OriginCountry of Origin is subject to change | VARIOUS |
