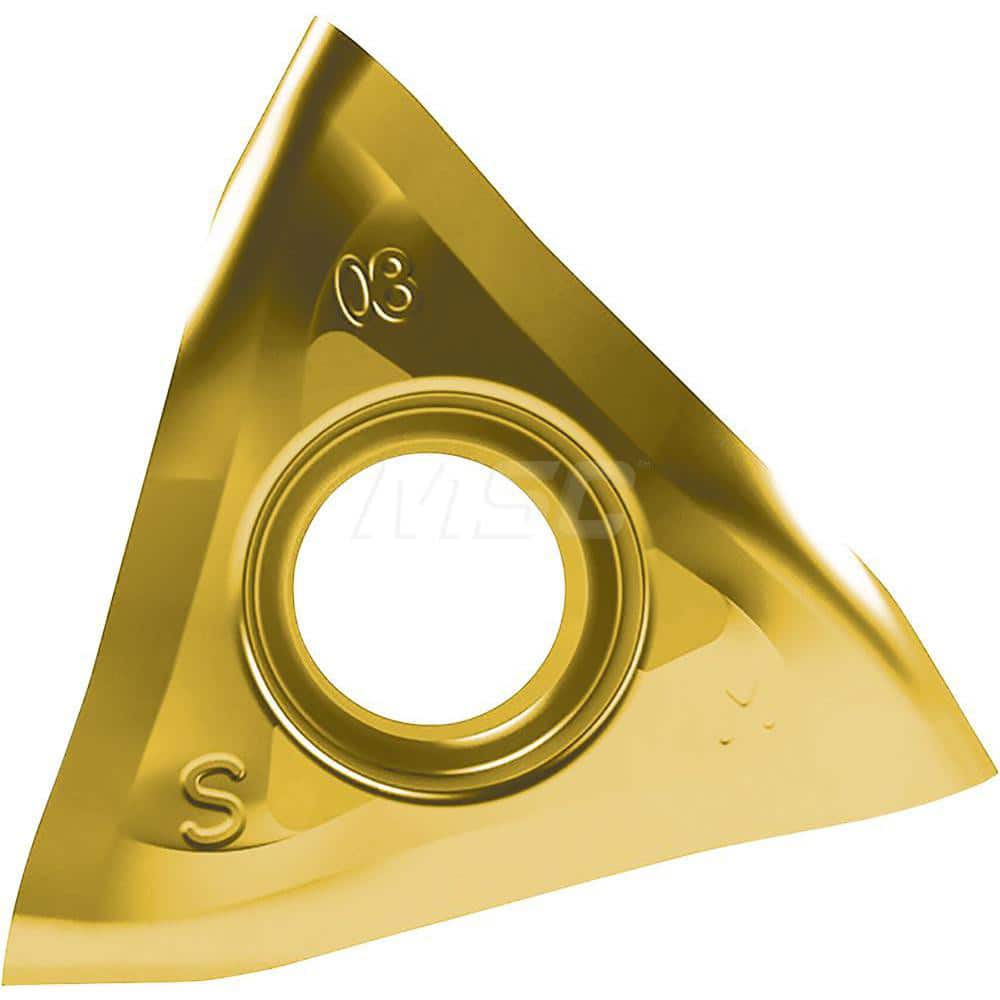

TRI POS RAKE RH Carbide Milling Insert TiCN/Al2O3/TiN Finish, 5.7mm Thick
Item #: 16390692
Brand: Kyocera
Model #: TMA40002
Product Specifications
| Insert Style | TOMT |
| Insert Size Code | 060508 |
| Insert Size | 060508 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CA6535 |
| Inscribed Circle (Decimal Inch) | 0.2835 |
| Inscribed Circle (mm) | 7.20 |
| Thickness Range (Decimal Inch) | 0.2200 to 0.2350 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Insert Hand | Right Hand |
| Series | MEV-Series |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.40 |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Primary Workpiece Material | Superalloy; Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Ansi Code | TOMT060508ERSMCA6535 |
| Iso Code | TOMT060508ER-SM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | TOMT060508ERSMCA6535 |
| Chip Breaker | ER-SM |
| Shape | Triangle |
| Insert Holding Method | Screw |
| Thickness (mm) | 5.70 |
| Coating/Finish | Coated |
| Included Angle Degree | 30 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2244 |
