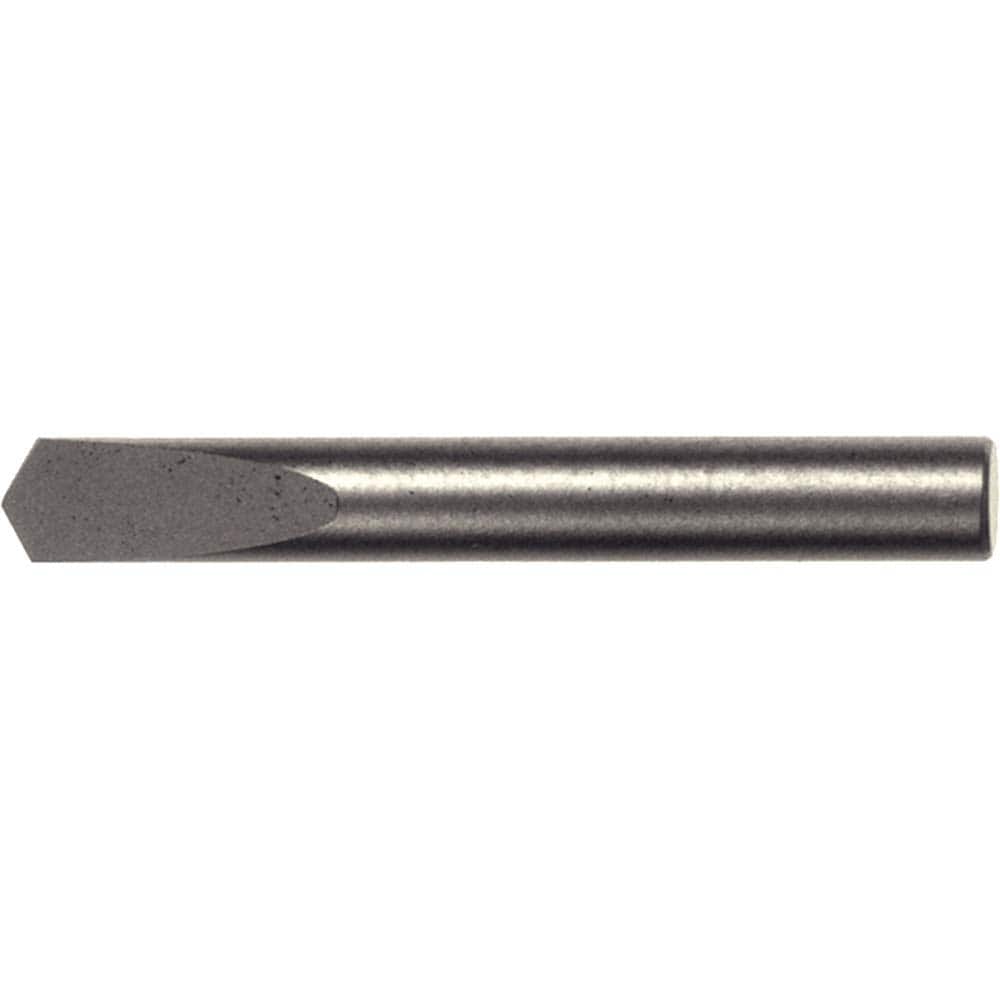

1/8″ 118° Solid Carbide Spade Drill Bit Bright Finish, 1-1/2″ OAL, 7/16″ Flute Length, for Cast Iron, Alloy Steel, Carbon Steel, Stainless Steel
Item #: 16390056
Brand: Cleveland
Model #: C89708
Product Specifications
| Drill Bit Type | Spade Drill Bit |
| Drill Bit Size | 0.125 in |
| Drill Bit Size (Decimal Inch) | 0.125 in |
| Drill Bit Size (Inch) | 0.125 in; 1/8 |
| Drill Point Angle | 118 ? |
| Drill Bit Material | Solid Carbide |
| Shank Diameter | 0.125 in; 3.17 mm |
| Drill Bit Finish/Coating | Bright (Polished); Uncoated |
| Series | 1765 |
| Overall Length (Decimal Inch) | 1-1/2 |
| Overall Length (Inch) | 1-1/2 |
| Tool Material | Solid Carbide |
| Coated | Uncoated |
| Shank Diameter (Decimal Inch) | 0.125 in; 3.17 mm |
| Coating | Bright (Polished) |
| Shank Length | 26.99 mm; 1.0625 in |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Tool Application | Holemaking |
| Primary Workpiece Material | Non-Ferrous Metal; Alloy |
| Flute Length (Inch) | 7/16 |
| Shank Length (Decimal Inch) | 26.99 mm; 1.0625 in |
| Cutting Direction | Right Hand |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0000 to -0.0005 |
| Drill Bit Grade | General Purpose |
| Series/List | 1765 |
| PSC Code | 5133 |
