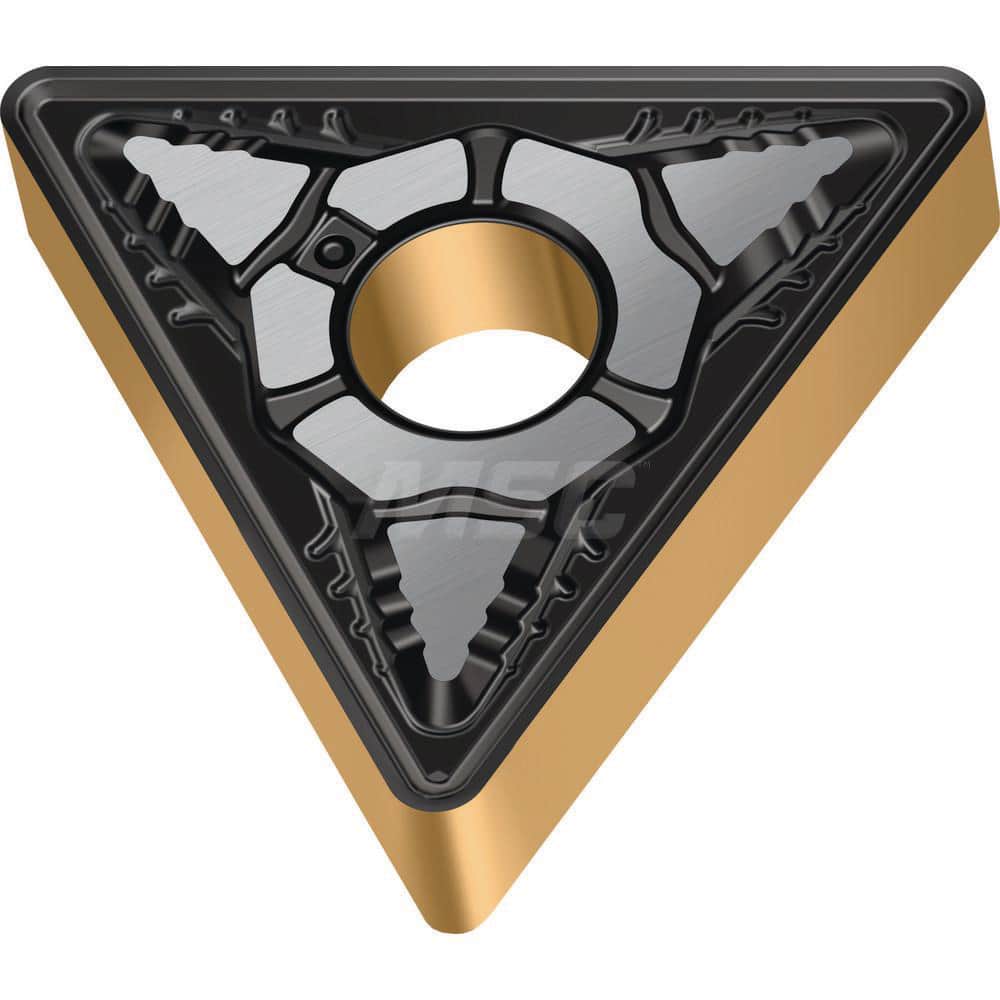

Turning Insert: TNMG666-RP5 WPP30G, Solid Carbide TiCN, Al2O3 & TiN Finish, Neutral, 1.2990″ Long, 3/4″ Inscribed Circle, 0.0940″ Corner Radius, 60.0 ° N/A Triangle, Series TNMG
Item #: 16360711
Brand: Walter
Model #: 8116070
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 666 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WPP30G |
| Hole Diameter (Decimal Inch) | 0.3120 |
| Maximum Depth of Cut (Decimal Inch) | 1.2990 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Pin; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/8 |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0940 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | TNMG |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.2990 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Cast Iron |
| Secondary Workpiece Material Code | K; M |
| Iso Code | TNMG330924-RP5 WPP30G |
| Chip Breaker | RP5 |
| Coating/Finish | TiCN; TiN; Al2O3 |
