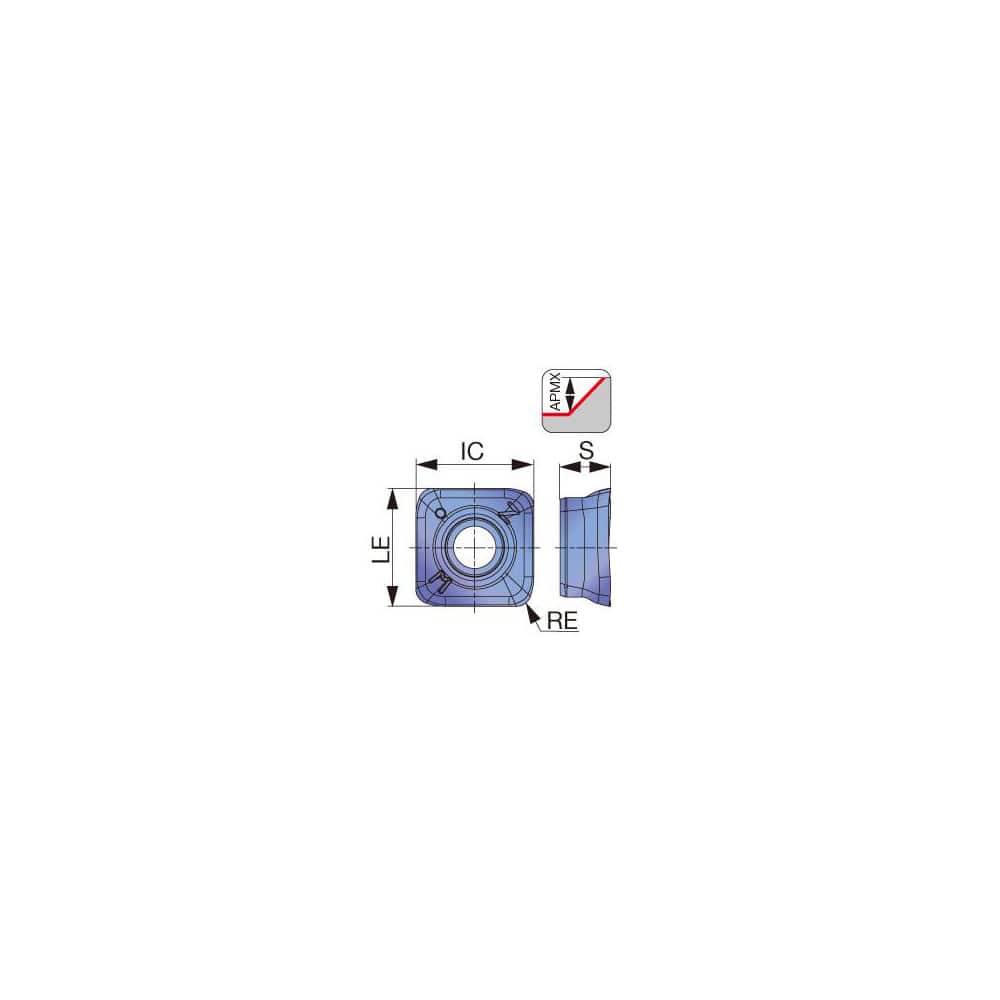

Milling Insert: SWMT0904ZER-MM AH3225, AH3225, Solid Carbide N/A Finish,
Item #: 16321192
Brand: Tungaloy
Model #: 6793096
Product Specifications
| Insert Style | SWMT |
| Insert Size Code | 0904 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH3225 |
| Inscribed Circle (Decimal Inch) | 0.3390 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Series | SWMT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.3390 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Ansi Code | SWMT0904ZER-MM AH3225 |
| Iso Code | SWMT0904ZER-MM AH3225 |
| Chip Breaker | MM |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1570 |
