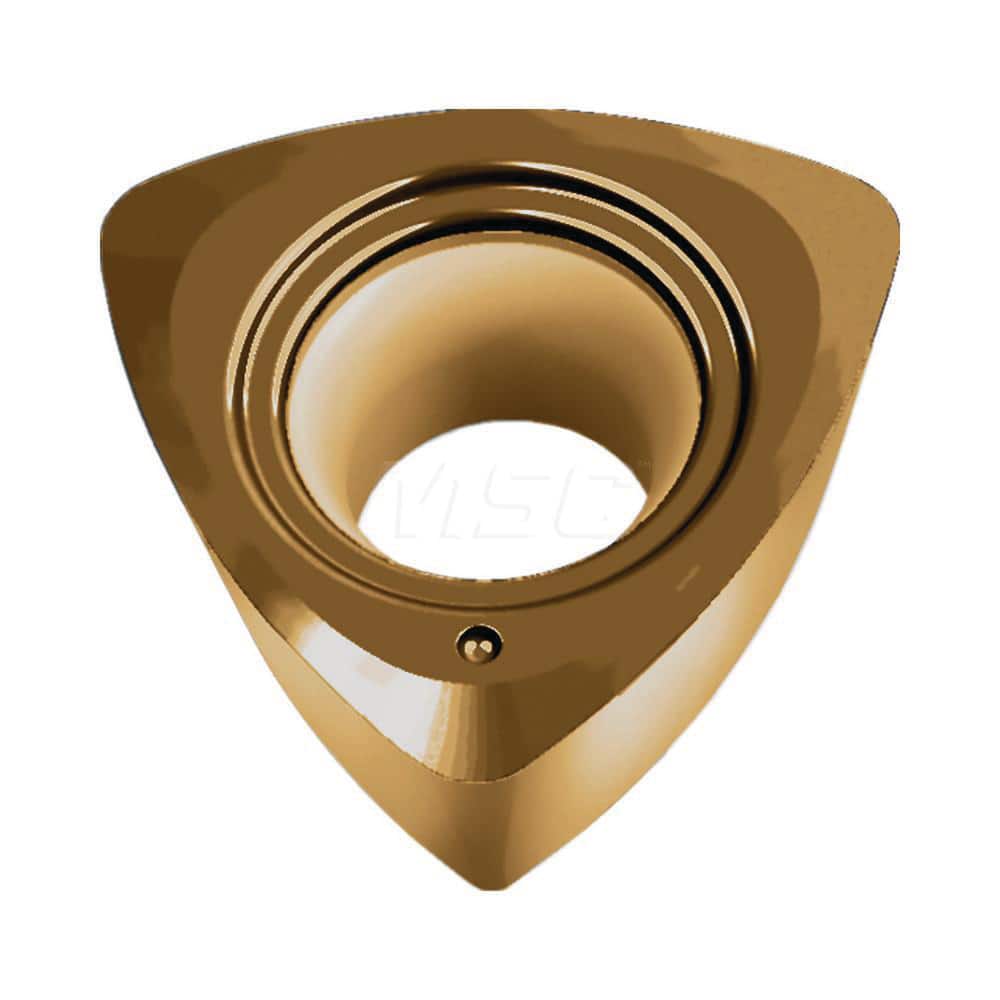

Milling Insert: P26337R25 WSP45G, WSP45G, Solid Carbide N/A Finish,
Item #: 16280646
Brand: Walter
Model #: 8112893
Product Specifications
| Insert Style | P2633 |
| Insert Size Code | 37R25 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSP45G |
| Inscribed Circle (Decimal Inch) | 0.5120 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Insert Hand | Right Hand |
| Relief Angle | 14.00 |
| Series | P2633 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Trigon |
| Primary Workpiece Material | Super-Alloys & Titanium |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | P26337R25 WSP45G |
| Chip Breaker | A27 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2190 |
