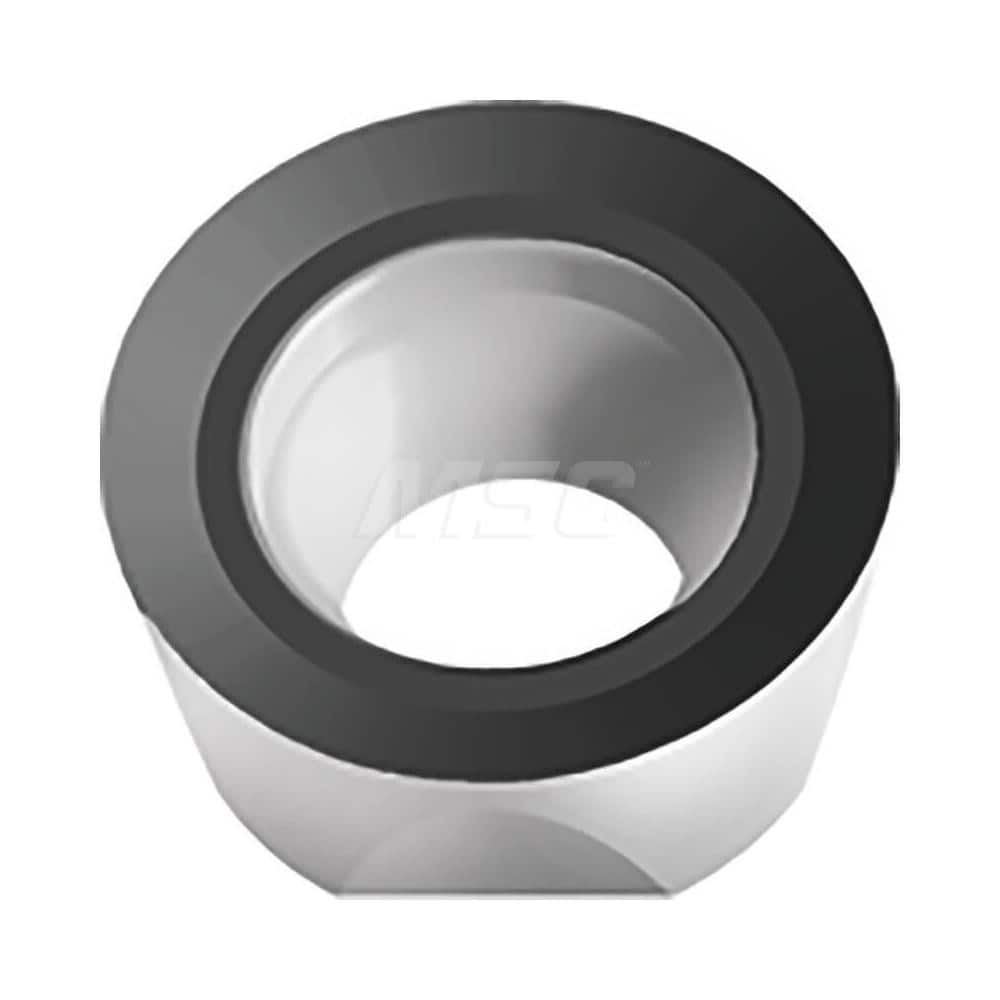

Milling Insert: ROHX0803M04-A57 WKP25S, WKP25S, Solid Carbide N/A Finish,
Item #: 16280224
Brand: Walter
Model #: 7988410
Product Specifications
| Insert Style | ROHX |
| Insert Size Code | 08 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WKP25S |
| Inscribed Circle (Decimal Inch) | 0.3150 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Insert Hand | Neutral |
| Relief Angle | 11.00 |
| Series | ROHX |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (mm) | 8.00 |
| Insert Shape | Round |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Iso Code | ROHX0803M04-A57 WKP25S |
| Chip Breaker | A57 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
