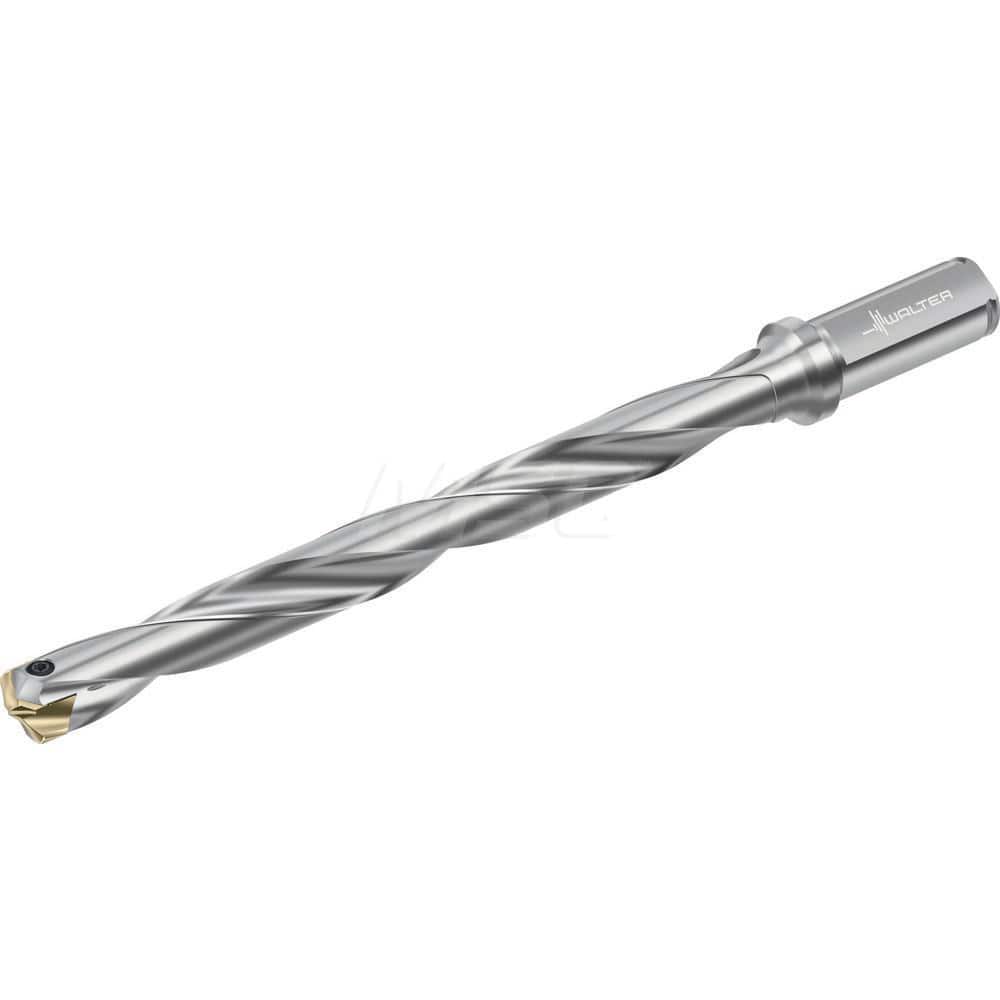

Replaceable Tip Drill: 19 to 19.99 mm Drill Dia, 190 mm Max Depth, Flatted Shank Uses P6000 Inserts, 280.6 mm OAL, Through Coolant
Item #: 16279648
Brand: Walter
Model #: 8061655
Product Specifications
| Minimum Drill Diameter (mm) | 19.00 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Depth (mm) | 190.00 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Tool Material | Steel |
| Compatible Insert Style | P6000 |
| Compatible Insert Size Code | 600x |
| Overall Length (mm) | 280.60 |
| Series | D4140 |
| Toolholder Style | D4140 |
| Flute Length (mm) | 209.00 |
| Body Length | 225.54 |
| Shank Length (mm) | 51.59 |
| Tool Application | Drilling |
| Primary Workpiece Material | Non-Ferrous Metal; Superalloy; Stainless Steel; Cast Iron; Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Coolant Through | Yes |
