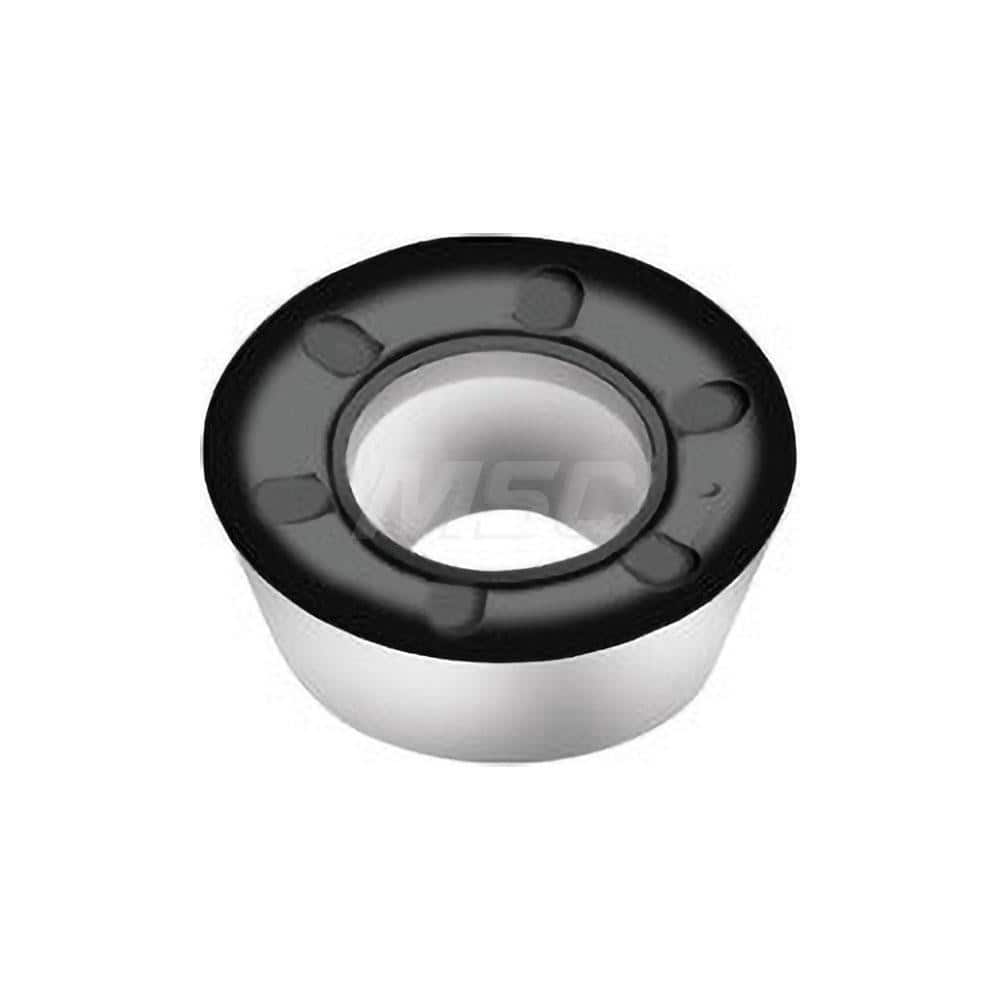

Milling Insert: RDMX2006M0-D57 WKP35S, WKP35S, Solid Carbide N/A Finish,
Item #: 16279515
Brand: Walter
Model #: 7924054
Product Specifications
| Insert Style | RDMX |
| Insert Size Code | 20 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WKP35S |
| Inscribed Circle (Decimal Inch) | 0.7870 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Decimal Inch) | 0.3940 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | RDMX |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Cutting Edge Effective Length (mm) | 20.00 |
| Insert Shape | Round |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Iso Code | RDMX2006M0-D57 WKP35S |
| Chip Breaker | D57 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2360 |
