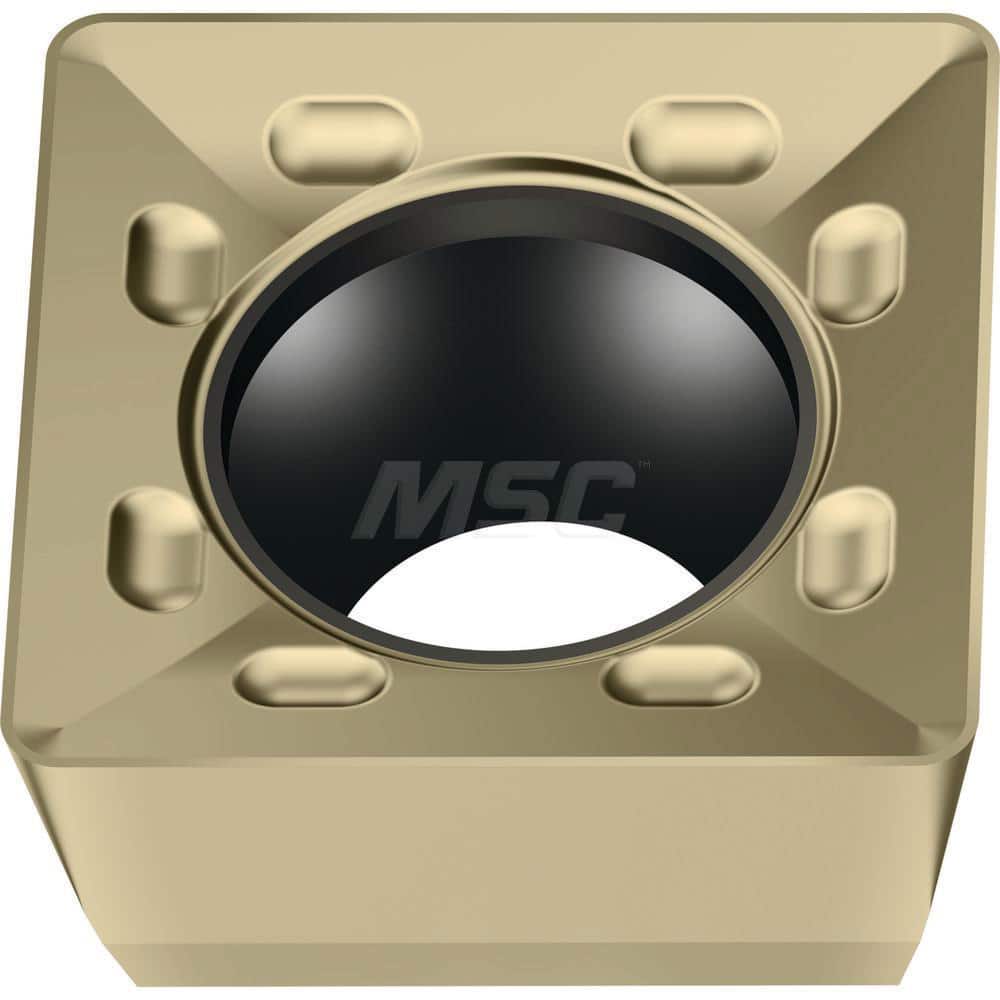

Milling Insert: SPMT060304-D51 WSP45G, WSP45G, Solid Carbide N/A Finish,
Item #: 16278806
Brand: Walter
Model #: 8112905
Product Specifications
| Insert Style | SPMT |
| Insert Size Code | 06 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSP45G |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness Range (Decimal Inch) | 0.1000 to 0.1250 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Inscribed Circle Range (Decimal Inch) | 0.2500 to 0.3000 |
| Insert Hand | Neutral |
| Relief Angle | 11.00 |
| Series | SPMT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (mm) | 6.35 |
| Insert Shape | Square |
| Primary Workpiece Material | Super-Alloys & Titanium |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | SPMT060304-D51 WSP45G |
| Chip Breaker | D51 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
