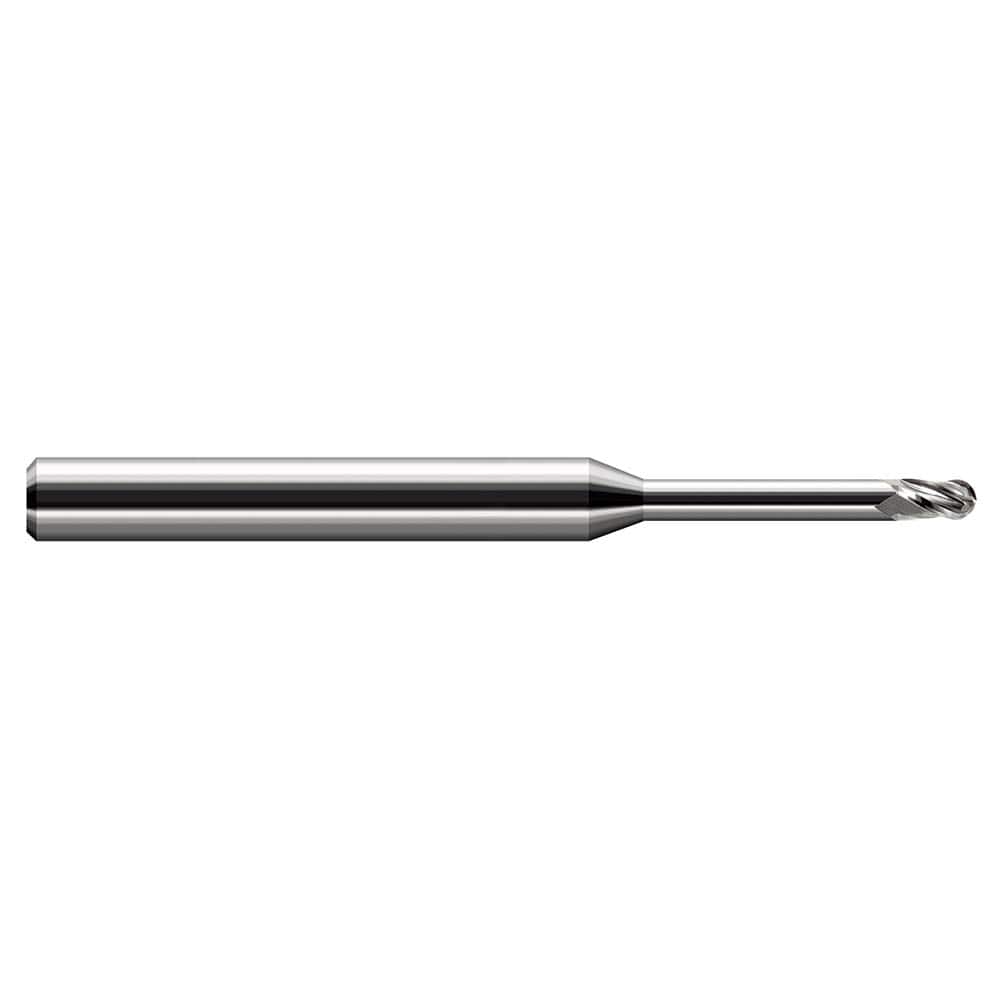

Ball End Mill: 0.071″ LOC, 4 Flute, Solid Carbide 2-1/2″ OAL, 1/8″ Shank Dia, 30 ° Helix, Uncoated
Item #: 16214504
Brand: Harvey Tool
Model #: 801347
Product Specifications
| Mill Diameter (Inch) | 3/64 |
| Mill Diameter (mm) | 1.20 |
| Length of Cut (mm) | 1.80 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Single |
| Extended Reach | Yes |
| Helix Angle | 30 |
| Undercutting | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 1/8 |
| Reach Length (Inch) | 3/8 |
| Overall Length (Inch) | 2-1/2 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Flute Type | Spiral |
| Centercutting | Yes |
| Number Of Flutes | 4 |
| Coating/Finish | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0710 |
