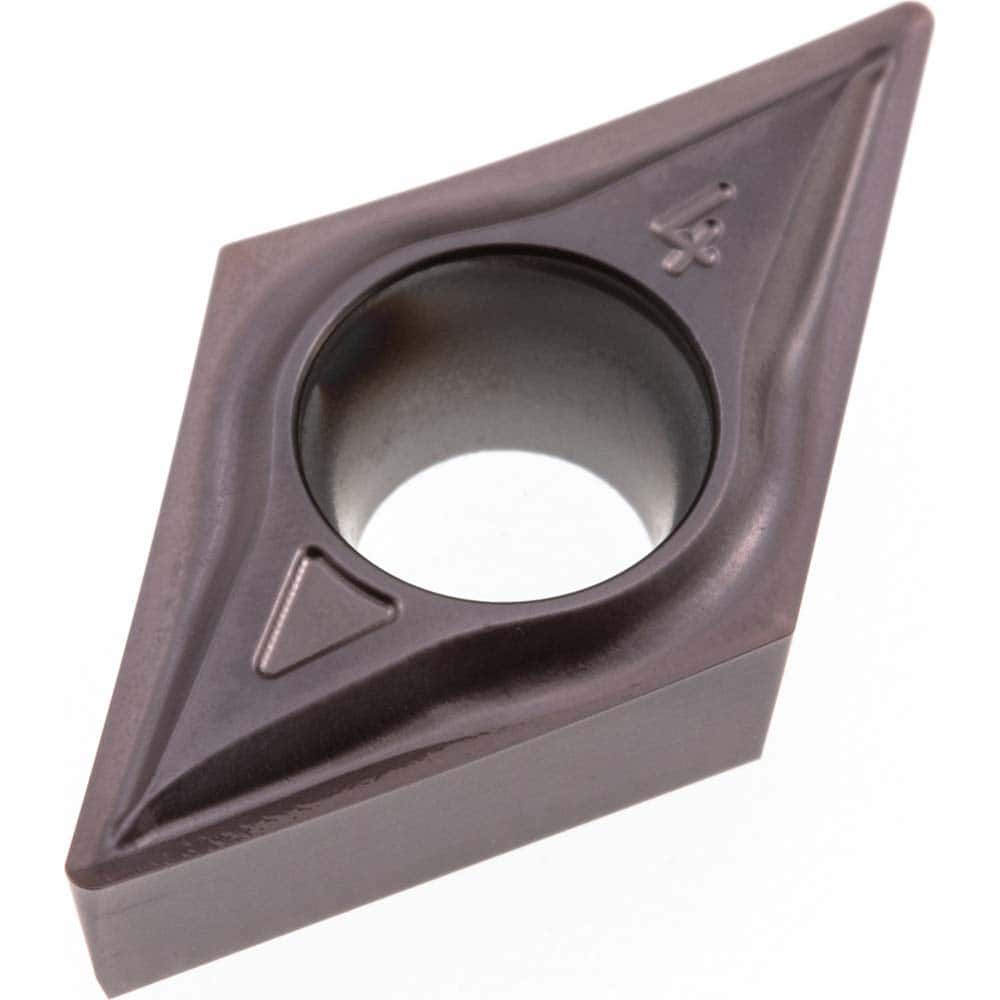

Arno - DCGT21.51AN-ASF AM5015 Carbide Turning Insert
Item #: 16020356
Brand: Arno
Model #: 81354
Product Specifications
| Insert Style | DCGT |
| Insert Size | 21.51 |
| Material | Carbide |
| Width (mm) | 6.35 |
| Length (mm) | 7.75 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (mm) | 2.3800 |
| Manufacturer's Grade | AM5015 |
| Chip Breaker | ASF |
| Insert Length (mm) | 7.75 |
| Hole Diameter (Decimal Inch) | 2.8000 |
| ISO Number | DCGT 070204EN-ASF AM5015 |
| Rake | Positive |
| Relief Angle | 7.000 |
| Coating Process | PVD |
| Manufacturers Catalog Number | DCGT 070204EN-ASF |
| Primary Workpiece Material | P; M; S |
| Secondary Workpiece Material | K; N; H |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Finish/Coating | PVD |
| Corner Radius (mm) | 0.40 |
| Shape | Diamond |
