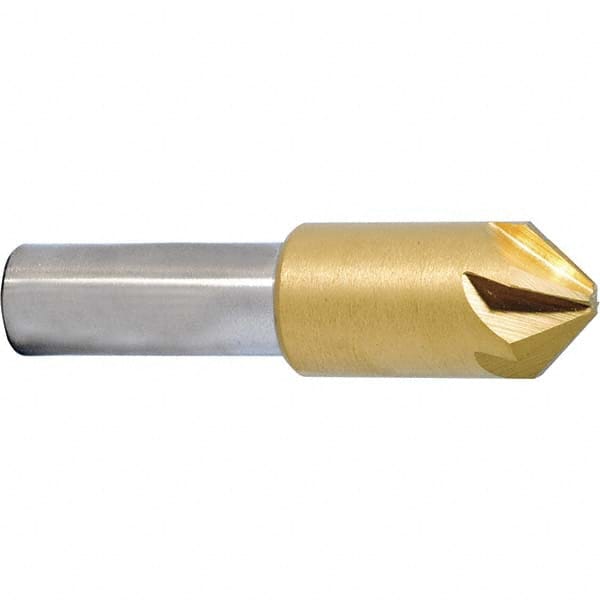

Melin Tool - 1/4" Head Diam, 1/4" Shank Diam, 6 Flute 100° Cobalt Countersink
Item #: 57808024
Brand: Melin Tool
Model #: 18197
Features and Benefits
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Head Diameter (Inch) | 1/4 |
| Head Diameter (Decimal Inch) | 0.2500 |
| Number of Flutes | 6 |
| Included Angle | 100 |
| Countersink Material | Cobalt |
| Countersink Finish/Coating | TiN |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Maximum Cutting Diameter (Inch) | 1/4 |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.0000 |
| Countersink Application | Countersinking |
| End Type | Single |
| Shank Type | Straight |
| Shank Material | Cobalt |
| Includes Pilot | No |
| Countersink Head Only | No |
| Cutting Direction | Right Hand |
| PSC Code | 5133 |
| Material Application | Cast Iron; Nickel Alloy; Non-Ferrous Metals; Stainless Steel; Steel |
| Material Application2 | Cast Iron; Nickel Alloy; Non-Ferrous Metals; Stainless Steel; Steel |
