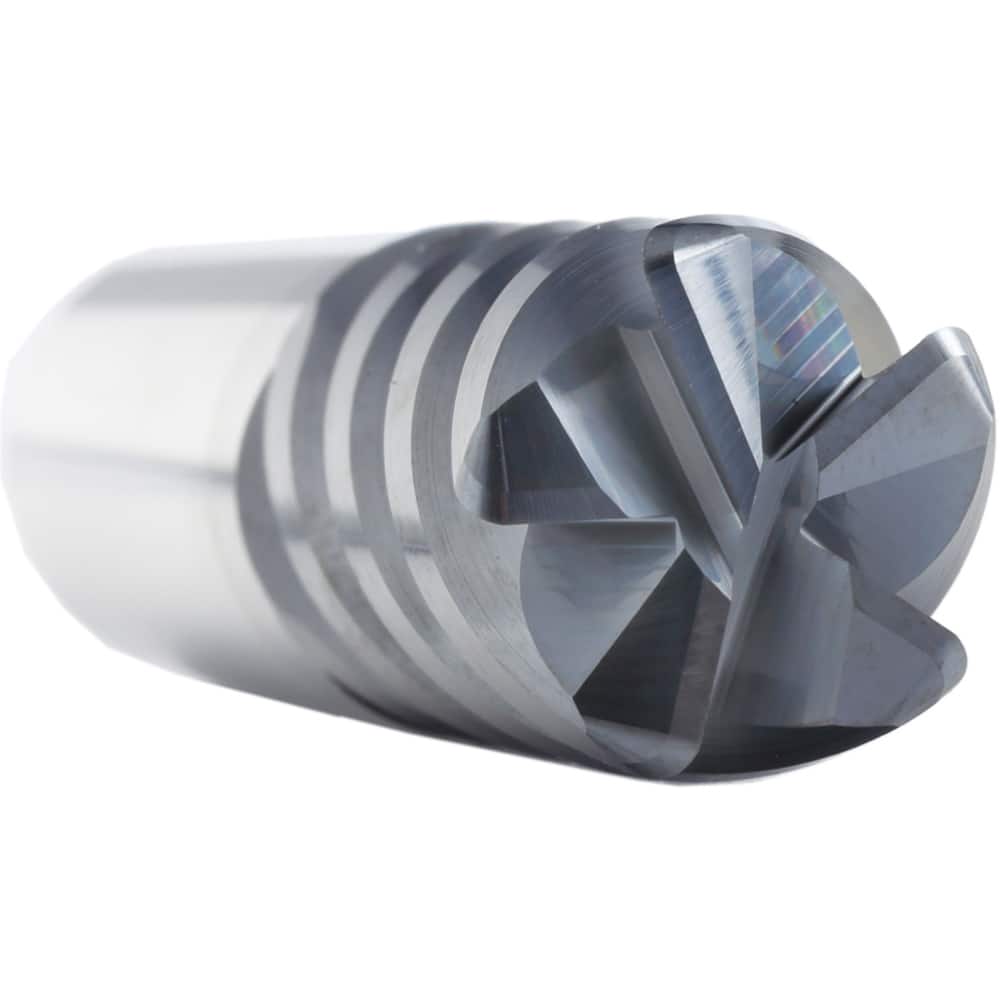

Square End Mill: 3/4'' Dia, 2-1/4'' LOC, 3/4'' Shank Dia, 5'' OAL, 5 Flutes, Solid Carbide Single End, AlCrN Finish, 45 ° Helix, Centercutting, RH Cut, Series SM5F
Item #: 15810682
Brand: Supermill
Model #: SM5F750L
Product Specifications
| Mill Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 2-1/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/4 |
| Finish/Coating | AlCrN |
| Overall Length (Inch) | 5 |
| Helix Angle | 45 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 2.0000+ |
| Length of Cut (Decimal Inch) | 2.2500 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 5.0000 |
| Flute Direction | Right Hand |
| Helix Style | Medium |
| Series | SM5F |
