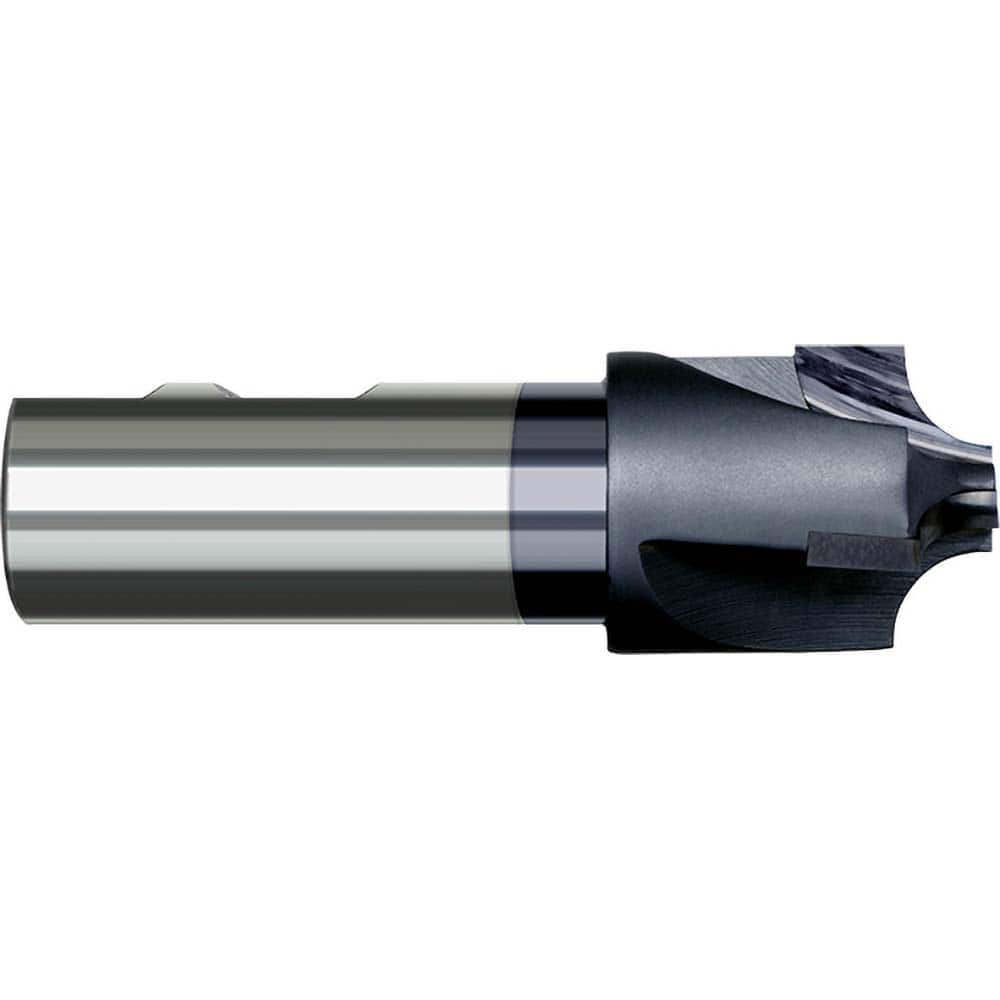

Harvey Tool - Corner Rounding End Mills; Material: Carbide Tipped ; Single or Double End: Single ; Radius (Inch): 5/8 ; Radius (Decimal Inch): 0.6250 ; Mill Diameter (Inch): 2 ; Mill Diameter (Decimal Inch): 2.0000
Item #: 15804875
Brand: Harvey Tool
Model #: 45040-C3
Product Specifications
Corner Rounding End Mills; Material: Carbide Tipped ; Single or Double End: Single ; Radius (Inch): 5/8 ; Radius (Decimal Inch): 0.6250 ; Mill Diameter (Inch): 2 ; Mill Diameter (Decimal Inch): 2.0000
| Material | Carbide Tipped |
| Single or Double End | Single |
| Radius (Inch) | 5/8 |
| Radius (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 2 |
| Mill Diameter (Decimal Inch) | 2.0000 |
| Number of Flutes | 3 |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 1-1/4 |
| Tip Diameter (Inch) | 21/32 |
| Tip Diameter (Decimal Inch) | 0.6560 |
| Overall Length (Inch) | 4-1/4 |
| Series/List | Corner Rounding End Mills - 3 Flute - Flared - Carbide Tipped |
