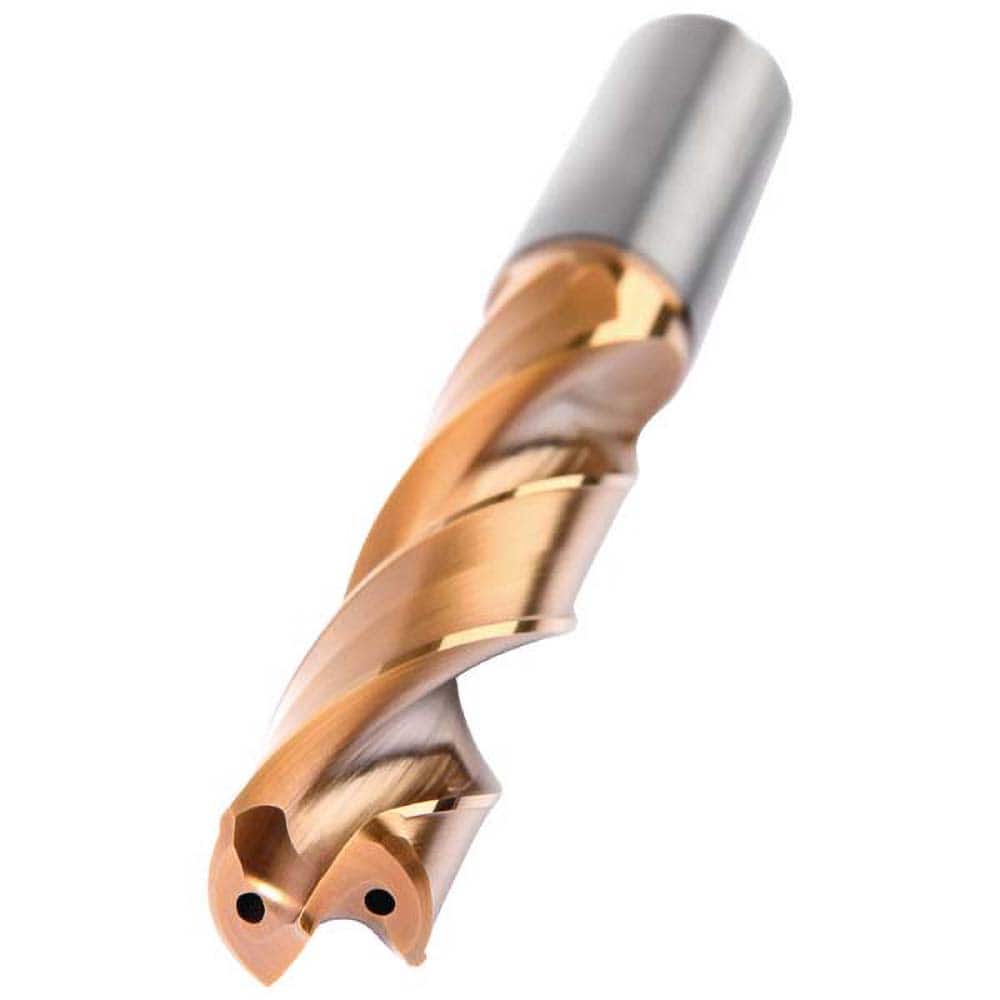

Jobber Length Drill Bit: 0.3268″ Dia, 143 °, Solid Carbide AlTiN Finish, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank
Item #: 15663735
Brand: Kennametal
Model #: 6783200
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3268 |
| Drill Bit Size (mm) | 8.30 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlTiN |
| Drill Point Angle (Degrees) | 143 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 103.00 |
| Flute Length (mm) | 61.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 10.00 |
| Maximum Drilling Depth (mm) | 49.00 |
| Shank Length (mm) | 40.00 |
| Drill Point Length (mm) | 2.44 |
| Drill Bit Grade | KCK10A |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Drill Bit Size Range (mm) | 8.00 - 9.00 |
