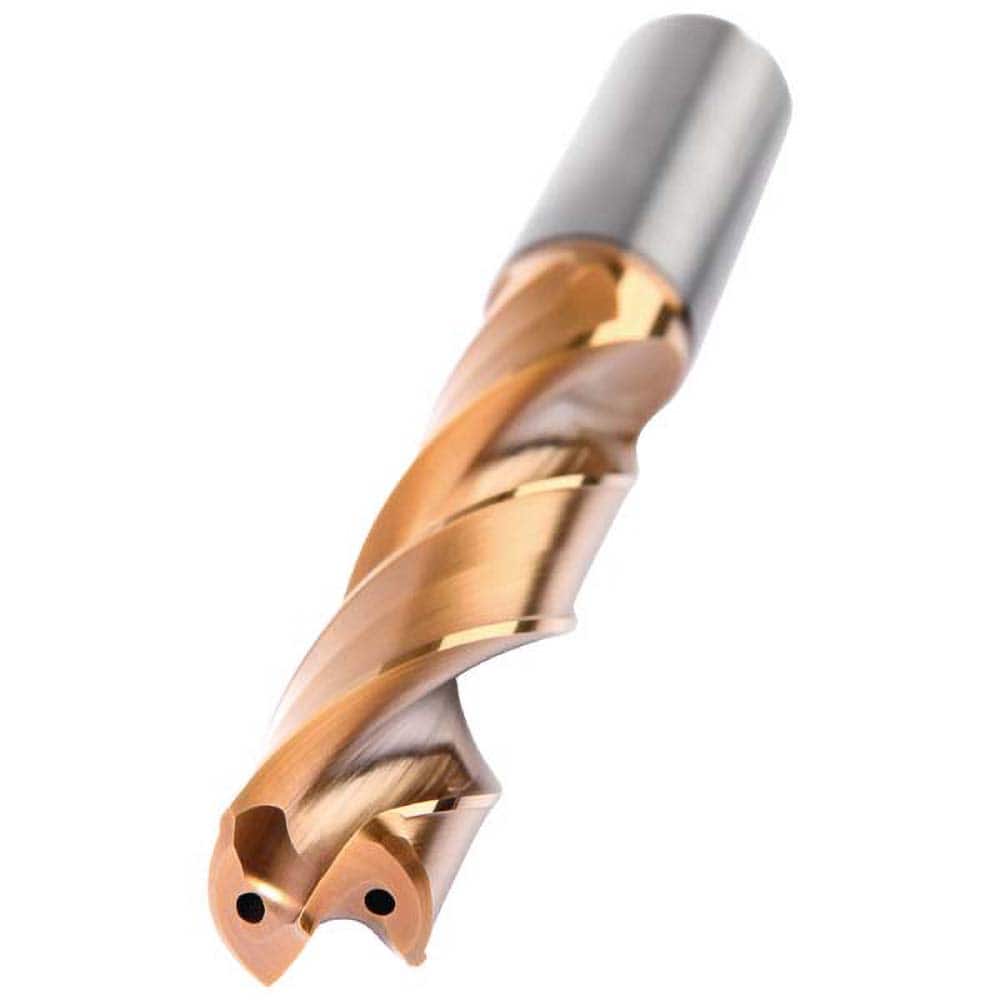

Jobber Length Drill Bit: 0.5156″ Dia, 143 °, Solid Carbide AlTiN Finish, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank
Item #: 15663677
Brand: Kennametal
Model #: 6783525
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.5156 |
| Drill Bit Size (Inch) | 33/64 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlTiN |
| Drill Point Angle (Degrees) | 143 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 124.00 |
| Flute Length (mm) | 76.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 9/16 |
| Maximum Drilling Depth (mm) | 60.00 |
| Shank Length (Decimal Inch) | 1.7913 |
| Drill Point Length (Decimal Inch) | 0.1512 |
| Drill Bit Grade | KCK10A |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
