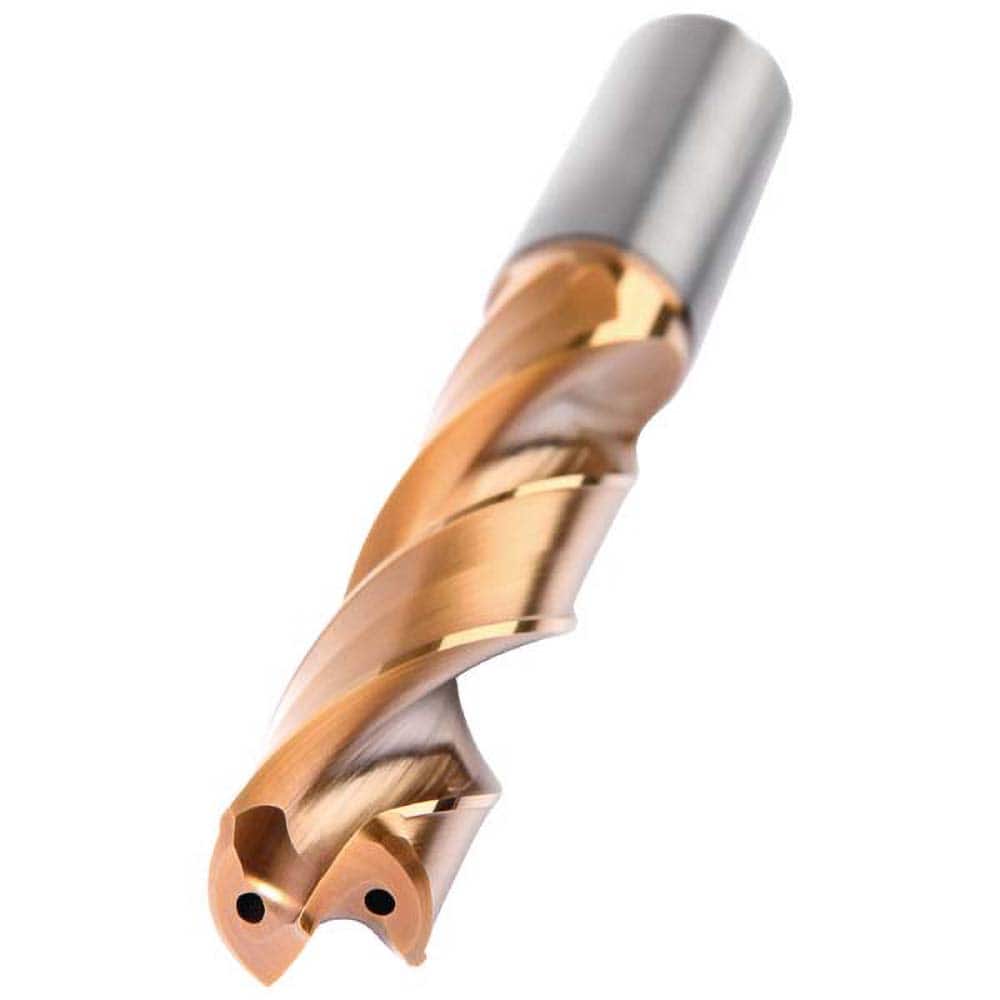

Jobber Length Drill Bit: 0.2402″ Dia, 143 °, Solid Carbide AlTiN Finish, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank
Item #: 15660954
Brand: Kennametal
Model #: 6783490
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2402 |
| Drill Bit Size (mm) | 6.10 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlTiN |
| Drill Point Angle (Degrees) | 143 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Overall Length (mm) | 82.00 |
| Flute Length (mm) | 43.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 1/4 |
| Maximum Drilling Depth (mm) | 34.90 |
| Shank Length (Decimal Inch) | 1.4370 |
| Drill Point Length (mm) | 1.79 |
| Drill Bit Grade | KCK10A |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Drill Bit Size Range (mm) | 6.00 - 7.00 |
