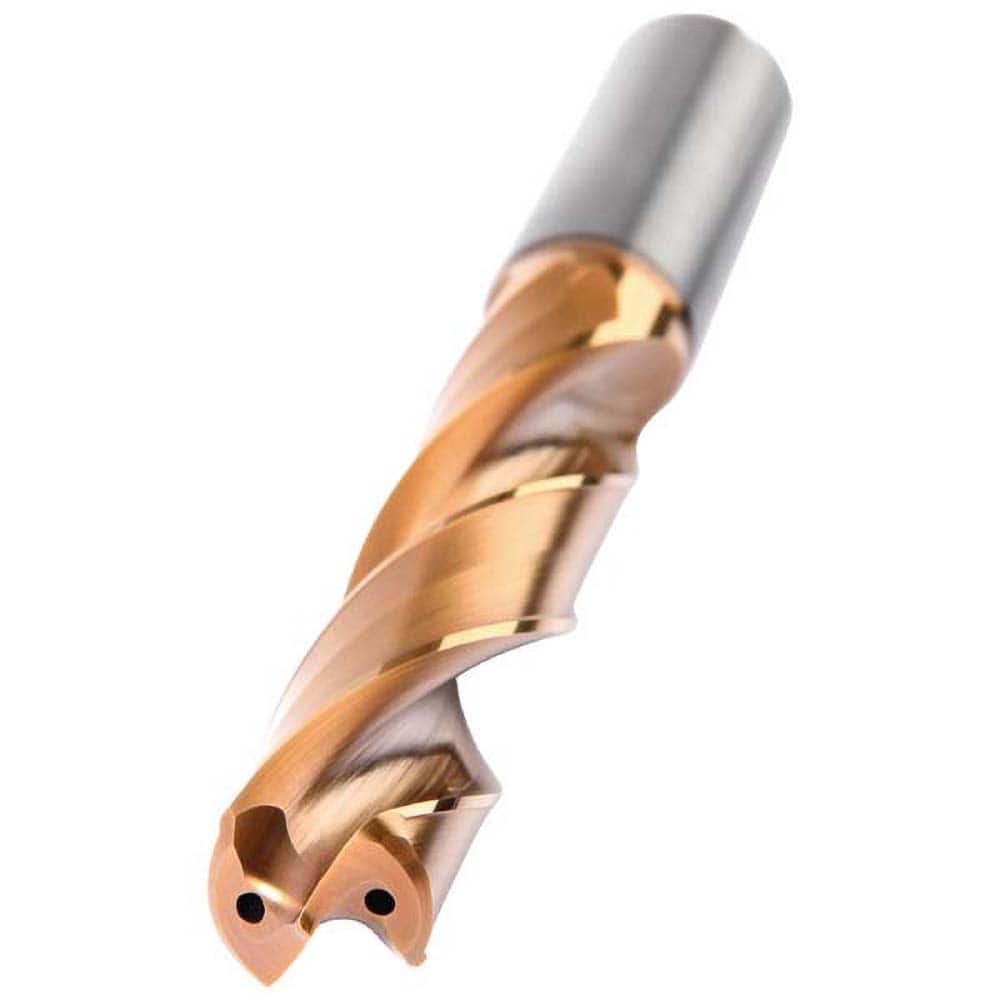

Taper Length Drill Bit: 0.3125″ Dia, 143 ° AlTiN Finish, 2.87″ Flute Length, 4.51″ OAL, RH Cut, Helical Flute, Straight Shank, Series K256
Item #: 15660533
Brand: Kennametal
Model #: 6782612
Product Specifications
| Drill Bit Size (Inch) | 5/16 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Shank Type | Straight |
| Flute Type | Helical |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 143 |
| Overall Length (Inch) | 4.5100 |
| Shank Diameter (Inch) | 5/16 |
| Drill Bit Size (Decimal Inch) | 0.3125 |
| Flute Length (Decimal Inch) | 2.8700 |
| Flute Length x Diamter Ratio | 8xD |
| Cutting Direction | Right Hand |
| Series | K256 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (Decimal Inch) | 2.5000 |
| Shank Length (Decimal Inch) | 1.5200 |
| Shank Length (Inch) | 1-33/64 |
| Drill Point Length (Decimal Inch) | 0.0917 |
| Drill Bit Grade | KCK10A |
| Material Application3 | Cast Iron |
