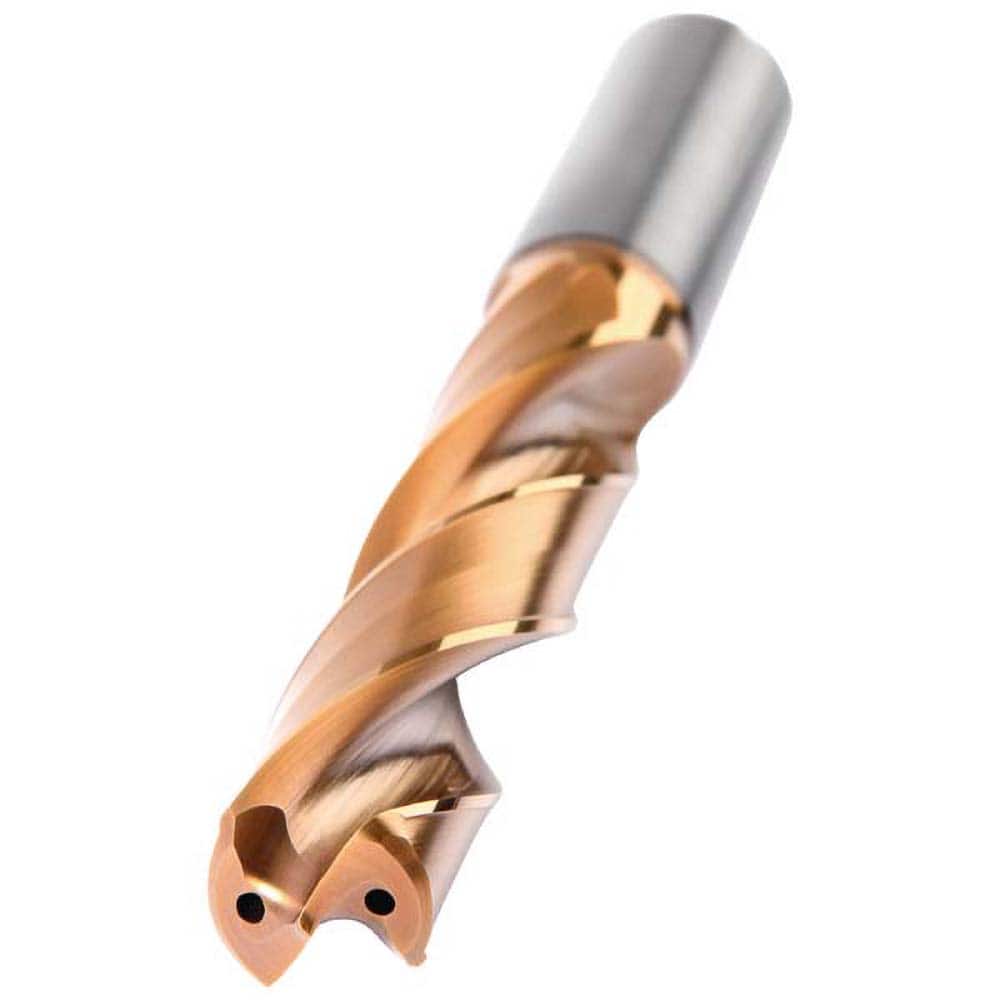

Taper Length Drill Bit: 0.2756″ Dia, 143 ° AlTiN Finish, 2.5″ OAL, RH Cut, Helical Flute, Straight Shank, Series K256
Item #: 15659923
Brand: Kennametal
Model #: 6782610
Product Specifications
| Drill Bit Size (mm) | 7.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Flute Length (mm) | 72.90 |
| Shank Type | Straight |
| Flute Type | Helical |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 143 |
| Overall Length (Inch) | 2.5000 |
| Shank Diameter (Inch) | 5/16 |
| Drill Bit Size (Decimal Inch) | 0.2756 |
| Flute Length x Diamter Ratio | 8xD |
| Overall Length (Decimal Inch) | 2-1/2 |
| Cutting Direction | Right Hand |
| Series | K256 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 63.50 |
| Drill Point Length (mm) | 2.05 |
| Drill Bit Grade | KCK10A |
| Material Application3 | Cast Iron |
