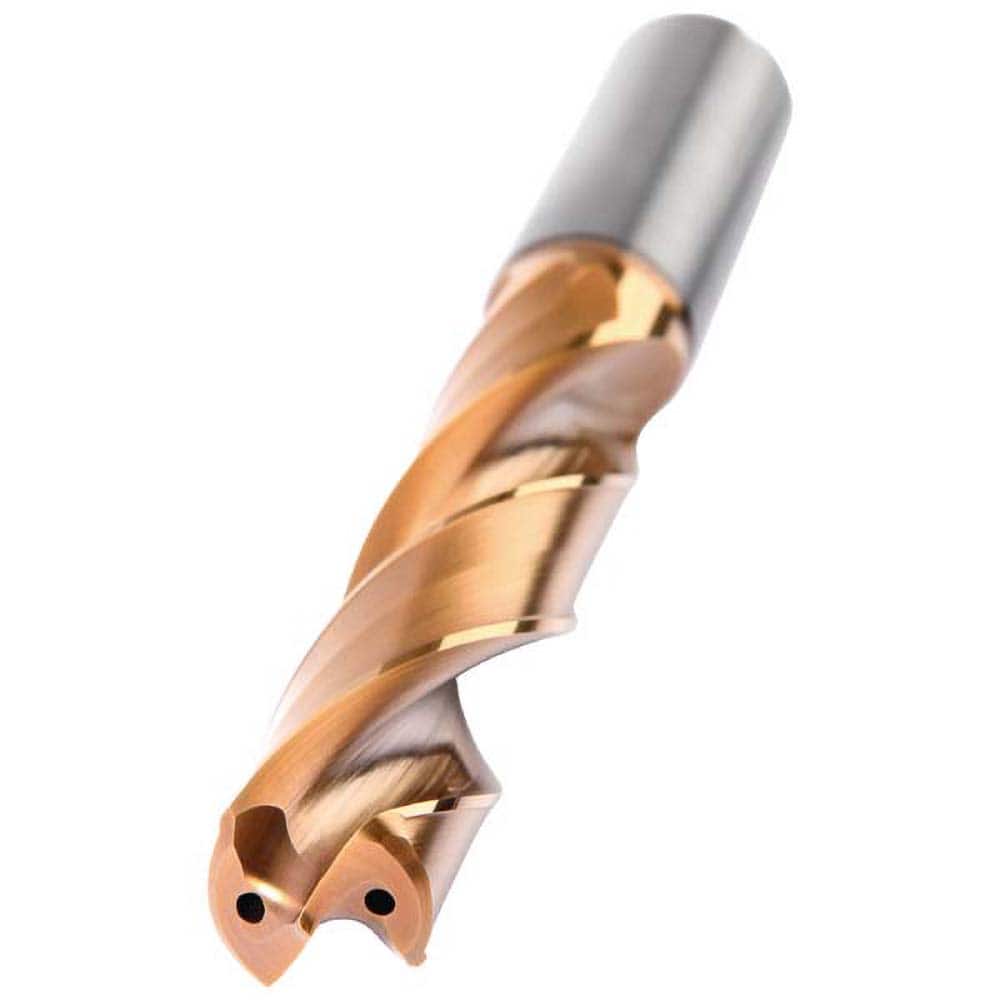

Taper Length Drill Bit: 0.1535″ Dia, 143 ° AlTiN Finish, RH Cut, Helical Flute, Straight Shank, Series B256
Item #: 15658958
Brand: Kennametal
Model #: 6783364
Product Specifications
| Drill Bit Size (mm) | 3.90 |
| Tool Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Flute Length (mm) | 49.00 |
| Shank Type | Straight |
| Flute Type | Helical |
| Coolant Through | Yes |
| Drill Point Angle (Degrees) | 143 |
| Overall Length (mm) | 87.00 |
| Shank Diameter (mm) | 6.00 |
| Drill Bit Size (Decimal Inch) | 0.1535 |
| Flute Length x Diamter Ratio | 8xD |
| Cutting Direction | Right Hand |
| Series | B256 |
| Flute Length X Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 41.00 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 1.14 |
| Drill Bit Grade | KCK10A |
| Material Application3 | Cast Iron |
