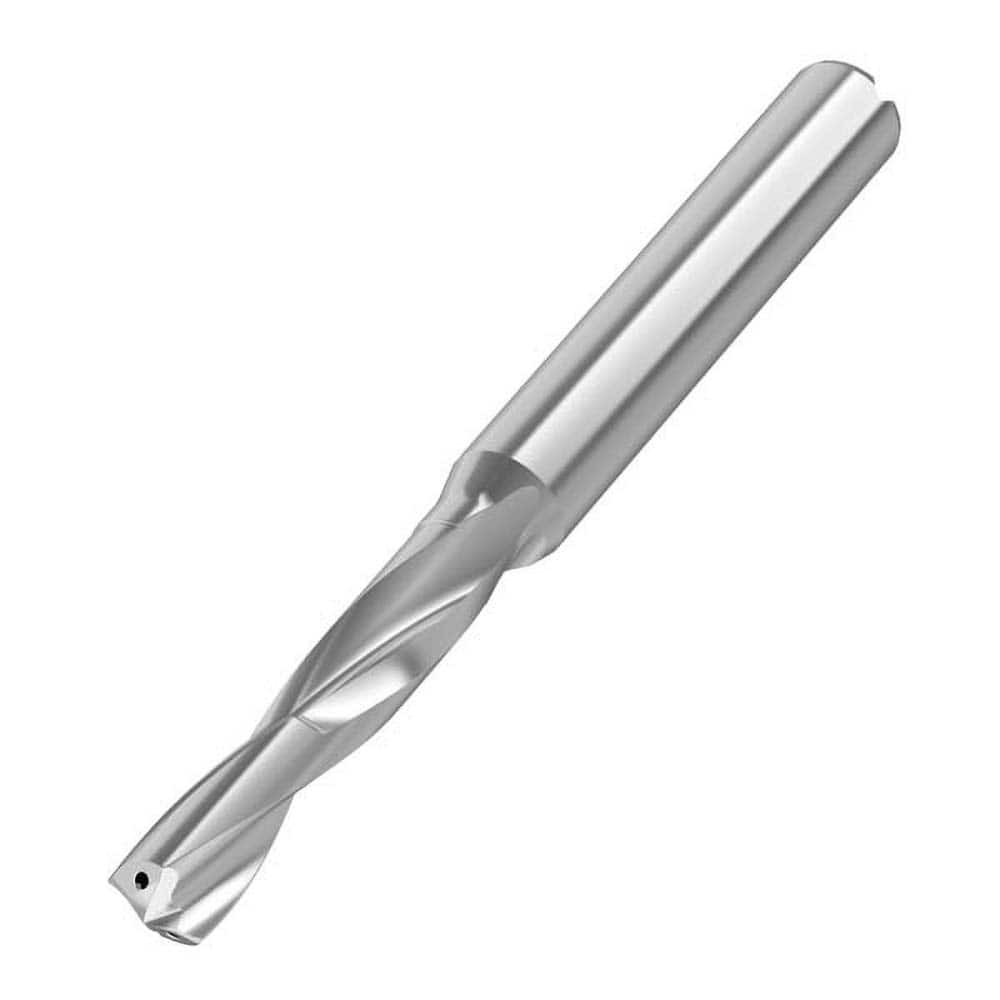

Screw Machine Length Drill Bit: 0.375″ Dia, 128 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series B556
Item #: 15658511
Brand: Kennametal
Model #: 6769081
Product Specifications
| Drill Bit Size (Inch) | 3/8 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 128 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Drill Bit Size (Decimal Inch) | 0.3750 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Shank Diameter (mm) | 10.00 |
| Series | B556 |
| Maximum Drilling Depth (mm) | 27.00 |
| Shank Length (Decimal Inch) | 1.6535 |
| Shank Length (mm) | 42.00 |
| Drill Point Length (mm) | 1.69 |
| Drill Point Length (Decimal Inch) | 0.0665 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 38.00 |
| Drill Bit Grade | KCC05 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
