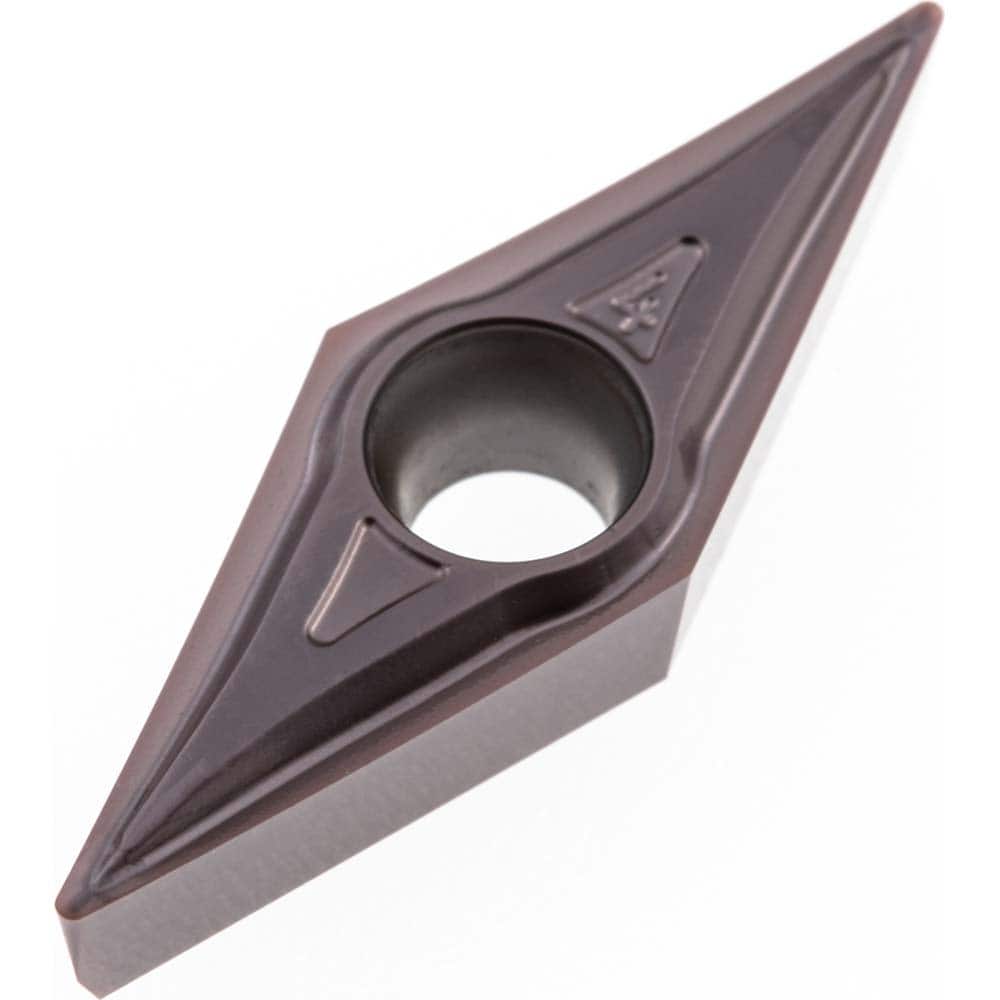

Arno - VCGT1.21.51FN-ASF AK10 Carbide Turning Insert
Item #: 15589062
Brand: Arno
Model #: 28191
Product Specifications
| Insert Style | VCGT |
| Insert Size | 1.21.51 |
| Material | Carbide |
| Width (mm) | 3.97 |
| Length (mm) | 6.92 |
| Inscribed Circle (mm) | 3.97 |
| Inscribed Circle (Decimal Inch) | 0.1560 |
| Thickness (mm) | 2.3800 |
| Manufacturer's Grade | AK10 |
| Coating | Uncoated |
| Chip Breaker | ASF |
| Insert Length (mm) | 6.92 |
| Hole Diameter (Decimal Inch) | 2.2000 |
| ISO Number | VCGT 070204FN-ASF AK10 |
| Rake | Positive |
| Relief Angle | 7.000 |
| Proprietary Coating Designation | Uncoated |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | VCGT 070204FN-ASF |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | K; S |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Finish/Coating | Uncoated |
| Corner Radius (mm) | 0.40 |
| Shape | Diamond |
