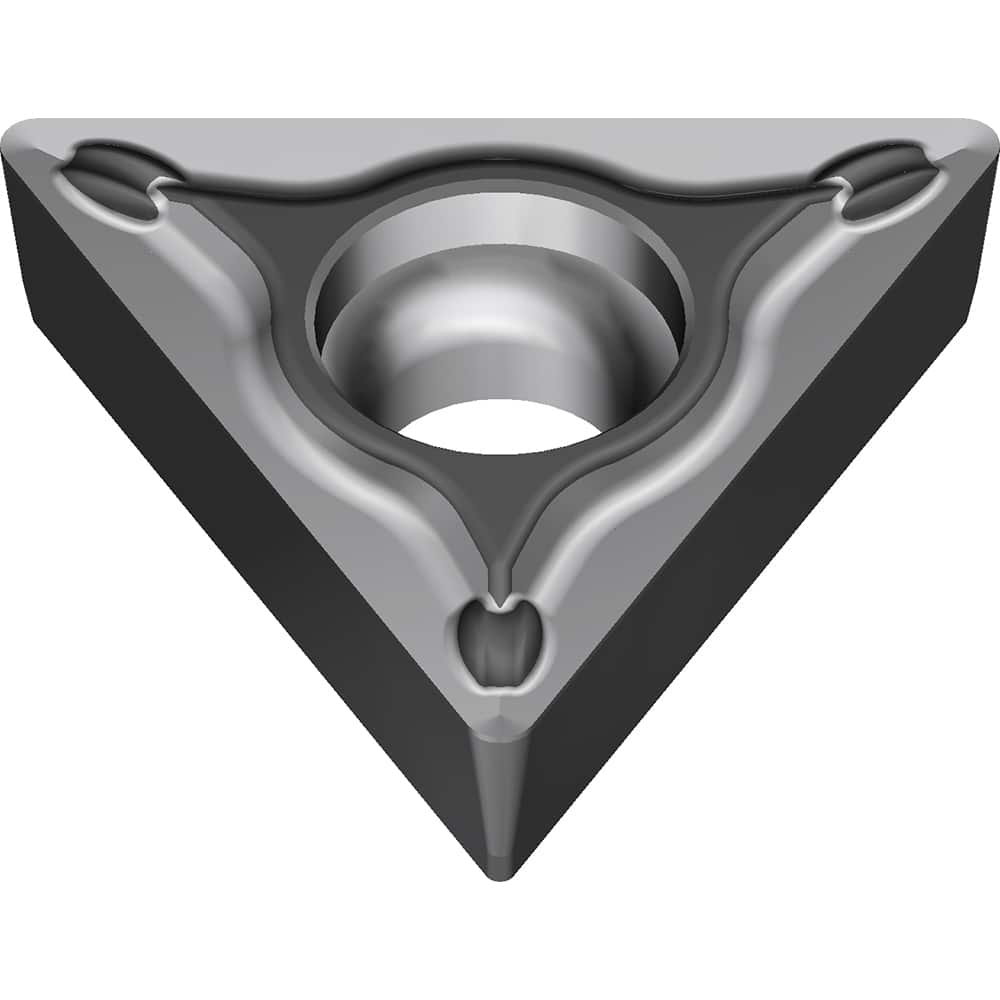

Sumitomo - TPMT630.5ESU AC6030M Carbide Turning Insert
Item #: 15531676
Brand: Sumitomo
Model #: 196CBWV
Product Specifications
| Insert Style | TPMT |
| Insert Size | 630.5 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3228 |
| Inscribed Circle (mm) | 4.76 |
| Inscribed Circle (Decimal Inch) | 0.1874 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | AC6030M |
| Coating | Absotech |
| Material Grade | M30; M35; M25 |
| Chip Breaker | ESU |
| ISO Number | TPMT080202N-SU |
| Rake | Positive |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TPMT630.5ESU-AC6030M |
| Primary Workpiece Material | Stainless Steel |
