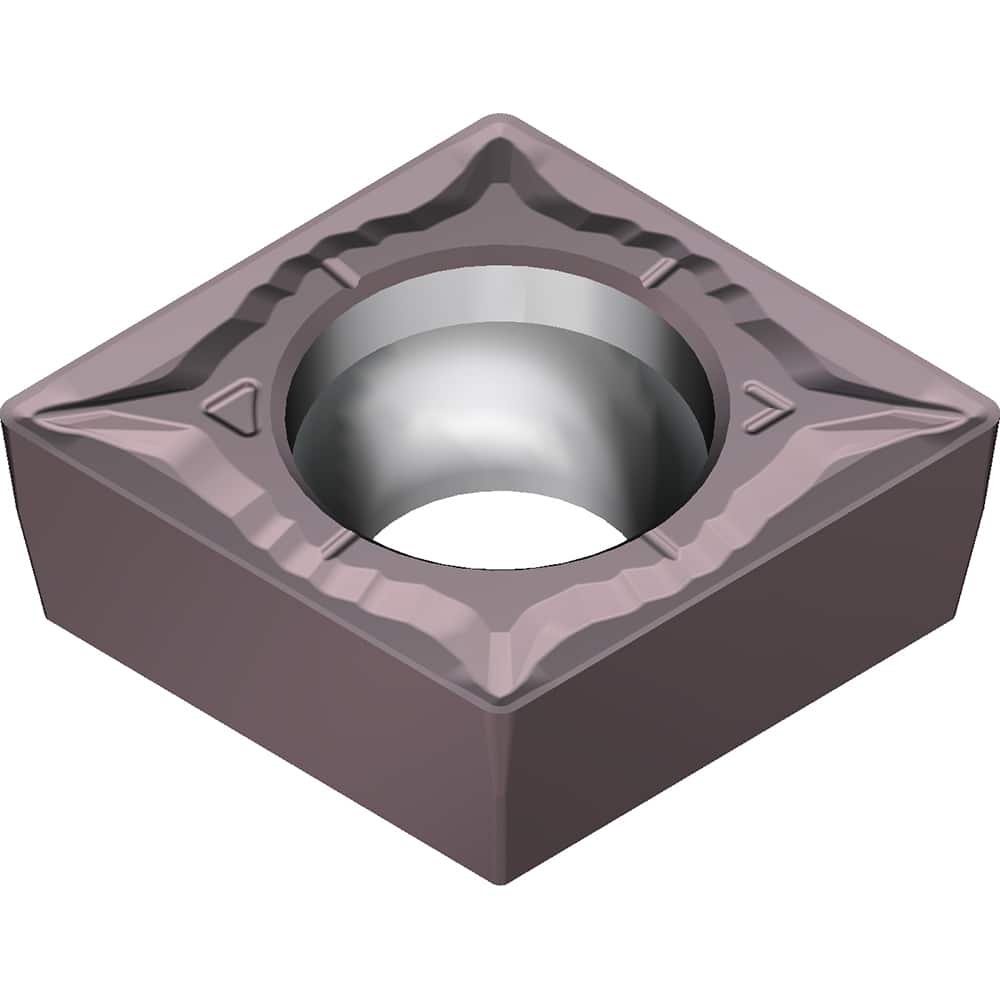

Sumitomo - CCMT21.51EGU AC6040M Carbide Turning Insert
Item #: 15529951
Brand: Sumitomo
Model #: 196DDCJ
Product Specifications
| Insert Style | CCMT |
| Insert Size | 21.51 |
| Material | Carbide |
| Length (Decimal Inch) | 0.2520 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | AC6040M |
| Coating | Absotech |
| Material Grade | M40; M30 |
| Chip Breaker | EGU |
| ISO Number | CCMT060204N-GU |
| Rake | Positive |
| Relief Angle | 7.000 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCMT21.51EGU-AC6040M |
| Primary Workpiece Material | Stainless Steel |
