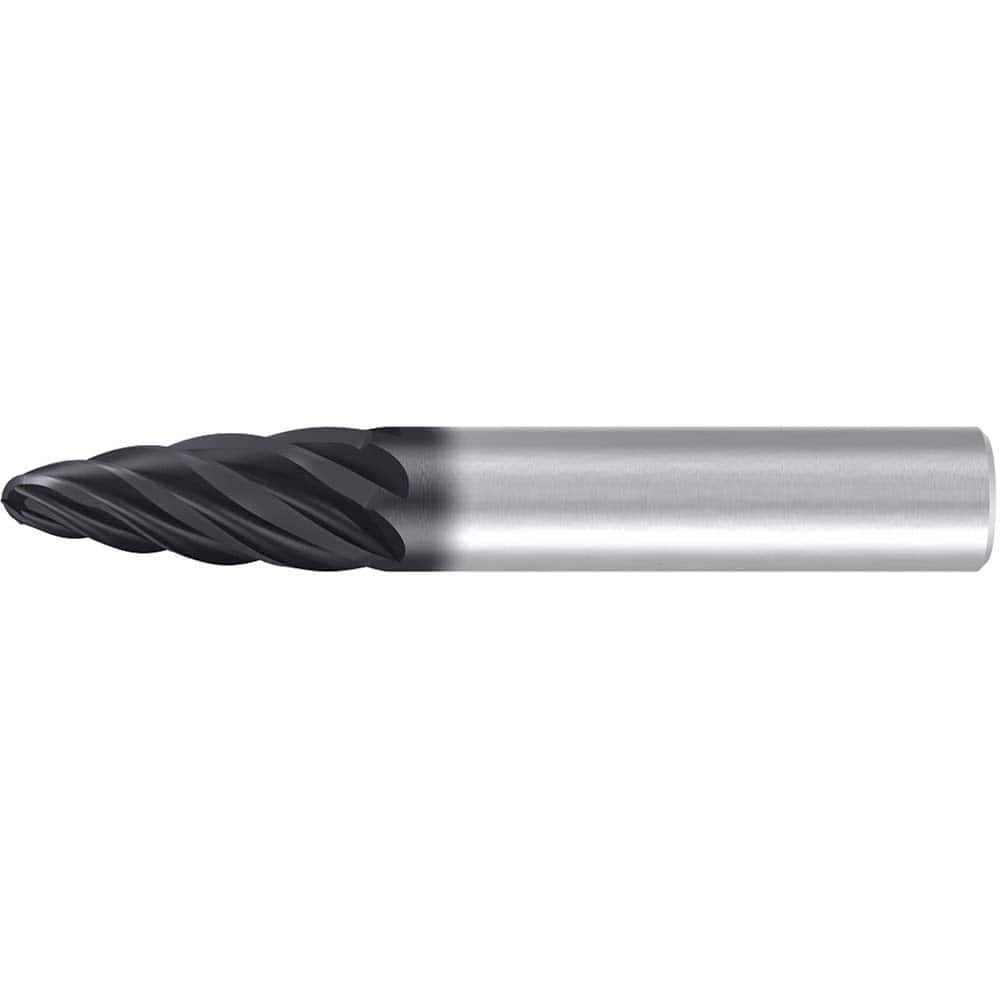

Emuge - Barrel Cutter End Mills; End Type: Circle Segment Oval Form ; Material: Solid Carbide ; Small End Diameter (mm): 6.00 ; Shank Diameter (mm): 16.0000 ; Length of Cut (mm): 31.0000 ; Length of Cut (Inch): 0
Item #: 15298383
Brand: Emuge
Model #: 3539L.16075A
Product Specifications
Barrel Cutter End Mills; End Type: Circle Segment Oval Form ; Material: Solid Carbide ; Small End Diameter (mm): 6.00 ; Shank Diameter (mm): 16.0000 ; Length of Cut (mm): 31.0000 ; Length of Cut (Inch): 0
| End Type | Circle Segment Oval Form |
| Material | Solid Carbide |
| Small End Diameter (mm) | 6.00 |
| Shank Diameter (mm) | 16.0000 |
| Length of Cut (mm) | 31.0000 |
| Length of Cut (Inch) | 0 |
| Number of Flutes | 6 |
| Helix Angle | 30.00 |
| Finish/Coating | AlCr |
| Overall Length (mm) | 92.0000 |
| Flute Type | Spiral |
| Flute Direction | Right Hand |
| Shank Diameter Tolerance (Decimal Inch) | h6 |
| Series/List | 3539L |
