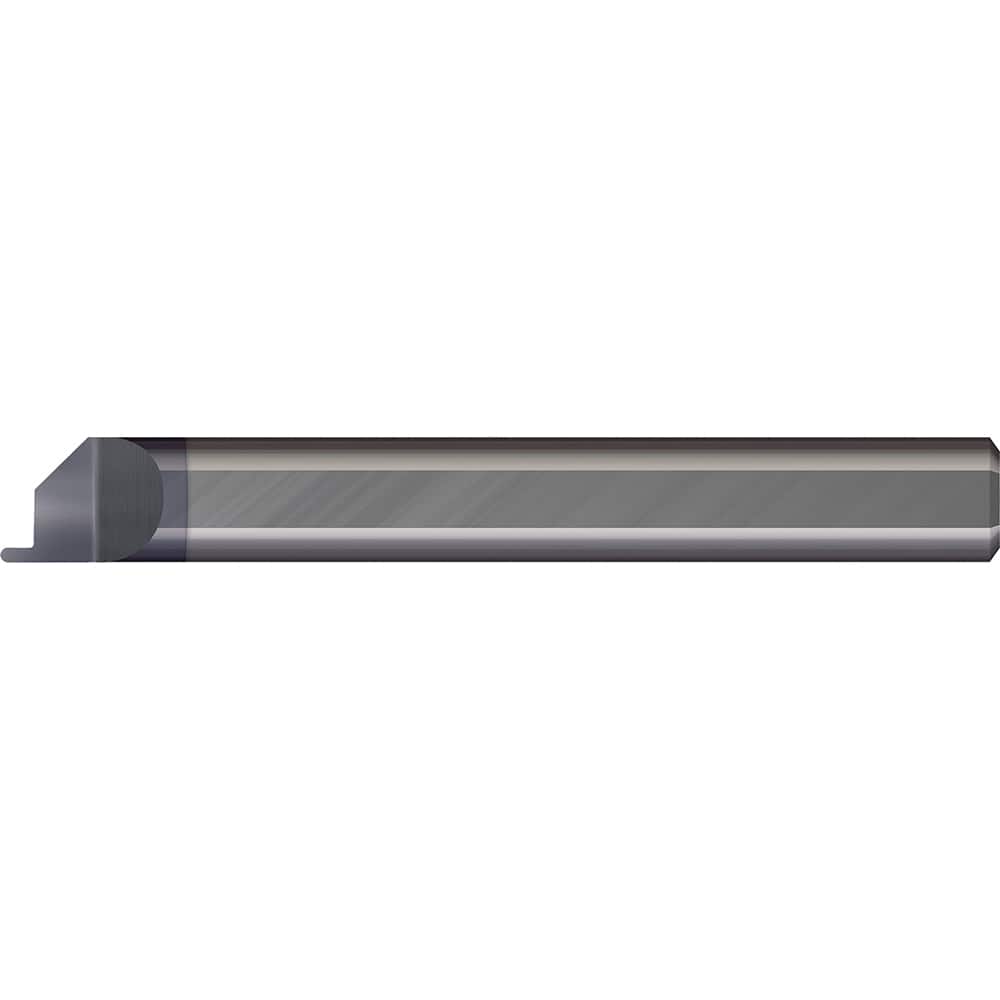

Micro 100 - Grooving Tools; Grooving Tool Type: Face ; Material: Solid Carbide ; Shank Diameter (Decimal Inch): 0.1875 ; Shank Diameter (Inch): 3/16 ; Groove Width (Decimal Inch): 0.0200 ; Projection (Decimal Inch): 0.0500
Item #: 15286834
Brand: Micro 100
Model #: FGF187020050X
Product Specifications
Grooving Tools; Grooving Tool Type: Face ; Material: Solid Carbide ; Shank Diameter (Decimal Inch): 0.1875 ; Shank Diameter (Inch): 3/16 ; Groove Width (Decimal Inch): 0.0200 ; Projection (Decimal Inch): 0.0500
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Groove Width (Decimal Inch) | 0.0200 |
| Projection (Decimal Inch) | 0.0500 |
| Minimum Hole Diameter (Decimal Inch) | 0.1870 |
| Maximum Hole Depth (Decimal Inch) | 0.7500 |
| Maximum Hole Depth (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 2.00000 |
| Overall Length (Inch) | 2 |
| Finish/Coating | AlTiN |
| Radius (Decimal Inch) | 0.0100 |
