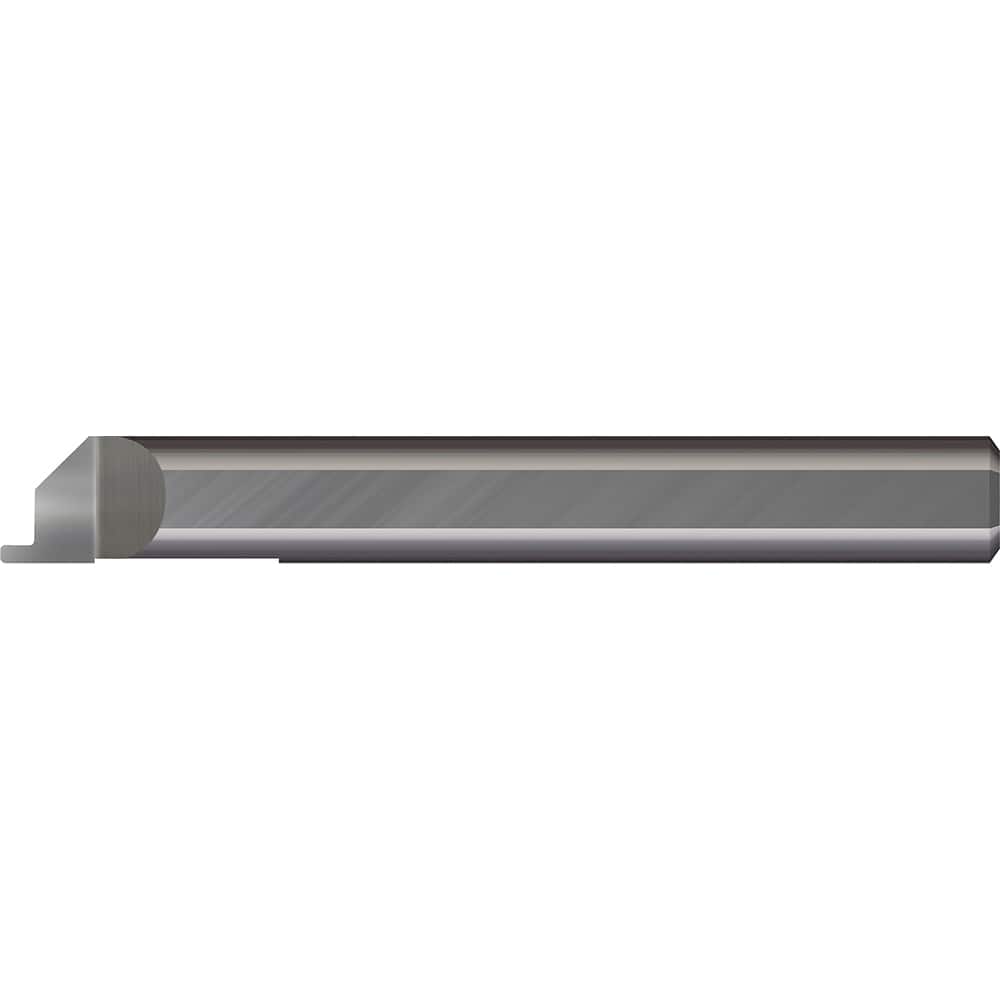

Micro 100 - Grooving Tools; Grooving Tool Type: Face ; Material: Solid Carbide ; Shank Diameter (Decimal Inch): 0.2500 ; Shank Diameter (Inch): 1/4 ; Groove Width (Decimal Inch): 0.0400 ; Projection (Decimal Inch): 0.0500
Item #: 15285224
Brand: Micro 100
Model #: FGC3250040050
Product Specifications
Grooving Tools; Grooving Tool Type: Face ; Material: Solid Carbide ; Shank Diameter (Decimal Inch): 0.2500 ; Shank Diameter (Inch): 1/4 ; Groove Width (Decimal Inch): 0.0400 ; Projection (Decimal Inch): 0.0500
| Grooving Tool Type | Face |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Groove Width (Decimal Inch) | 0.0400 |
| Projection (Decimal Inch) | 0.0500 |
| Minimum Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Hole Depth (Decimal Inch) | 1.0000 |
| Maximum Hole Depth (Inch) | 1 |
| Overall Length (Decimal Inch) | 2.50000 |
| Overall Length (Inch) | 2-1/2 |
| Finish/Coating | Uncoated |
| Radius (Decimal Inch) | 0.0030 |
