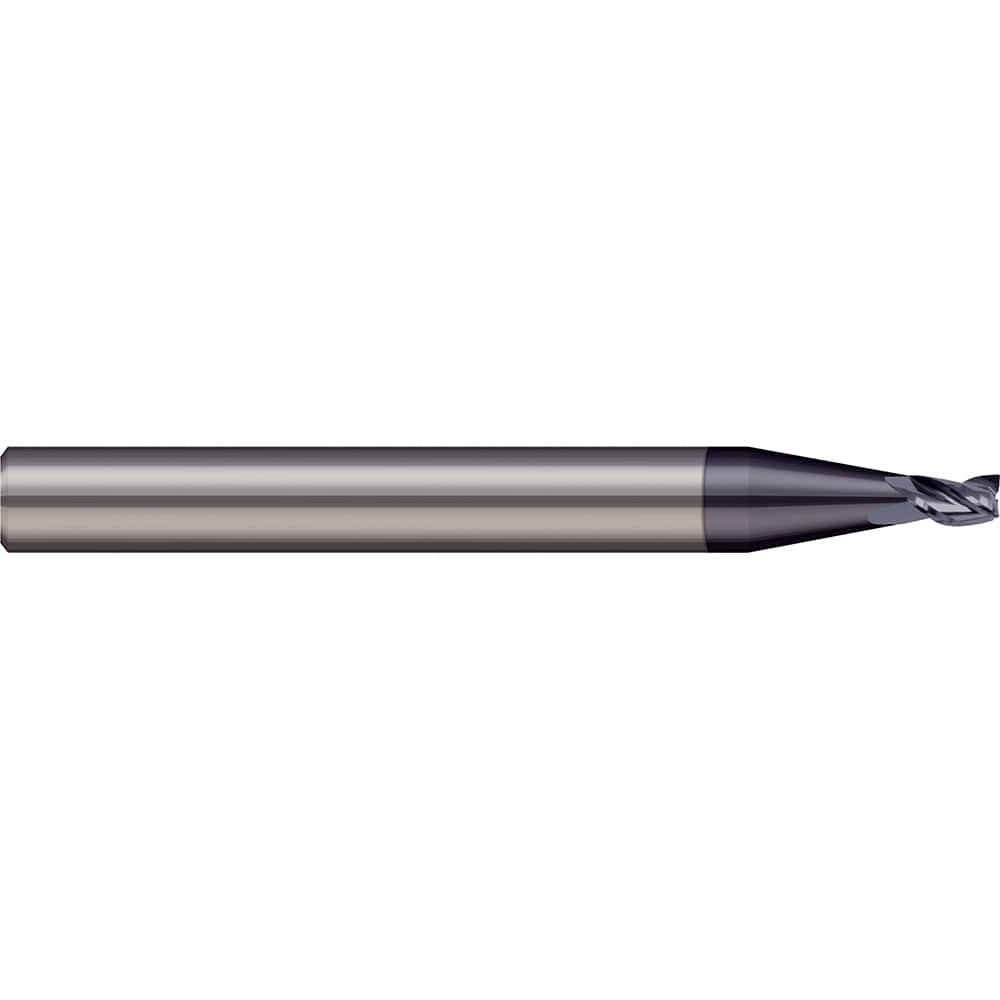

Micro 100 - Square End Mills; Mill Diameter (mm): 2.50 ; Mill Diameter (Decimal Inch): 0.0984 ; Length of Cut (mm): 3.0000 ; Length of Cut (Decimal Inch): 0.1181 ; Material: Solid Carbide ; Finish/Coating: nACRo
Item #: 15277148
Brand: Micro 100
Model #: MEFM-025-300K
Product Specifications
Square End Mills; Mill Diameter (mm): 2.50 ; Mill Diameter (Decimal Inch): 0.0984 ; Length of Cut (mm): 3.0000 ; Length of Cut (Decimal Inch): 0.1181 ; Material: Solid Carbide ; Finish/Coating: nACRo
| Mill Diameter (mm) | 2.50 |
| Mill Diameter (Decimal Inch) | 0.0984 |
| Length of Cut (mm) | 3.0000 |
| Length of Cut (Decimal Inch) | 0.1181 |
| Material | Solid Carbide |
| Finish/Coating | nACRo |
| Shank Diameter (mm) | 3.0000 |
| Single or Double End | Single |
| Overall Length (mm) | 38.0000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 20 |
| Variable Helix | No |
| Series/List | End Mills for Steels & High Temperature Alloys - Square - 2 & 3 Flute - Stub Flute |
