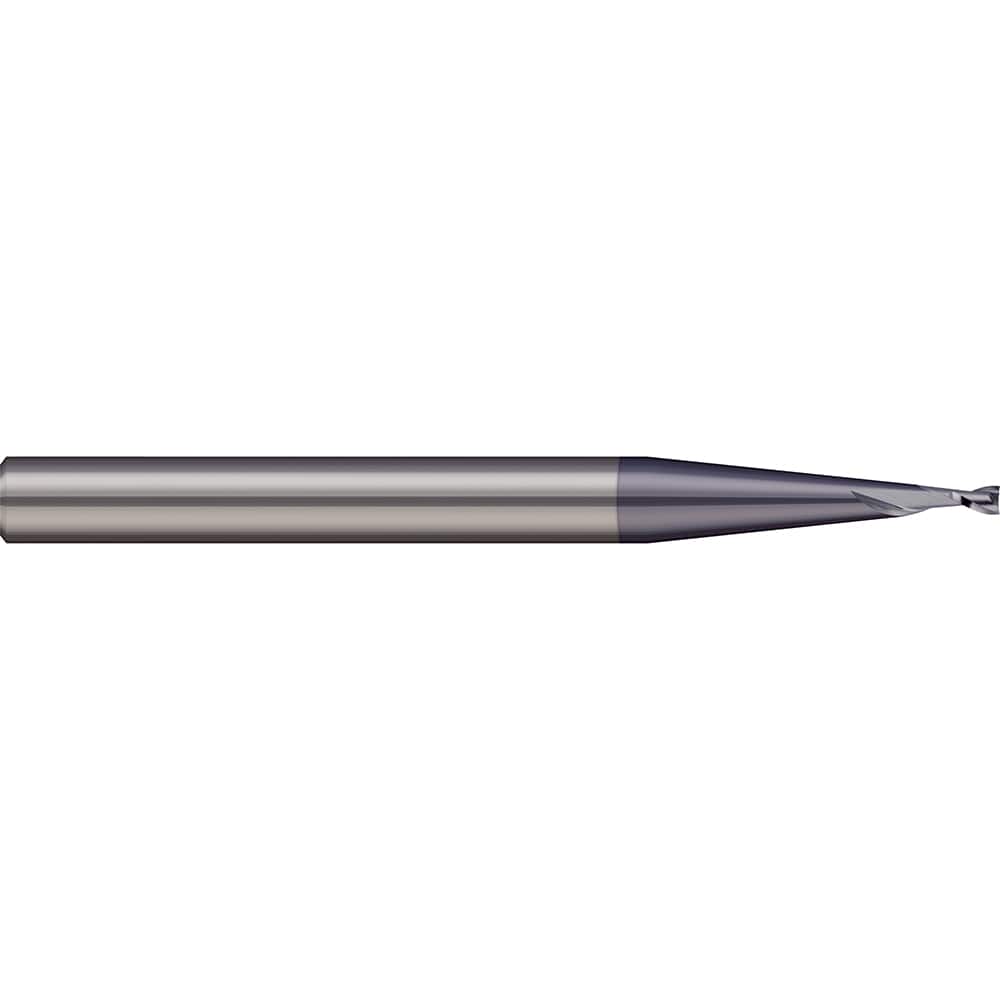

Micro 100 - Square End Mills; Mill Diameter (mm): 0.80 ; Mill Diameter (Inch): 1/32 ; Mill Diameter (Decimal Inch): 0.0310 ; Length of Cut (mm): 1.2000 ; Length of Cut (Inch): 3/64 ; Length of Cut (Decimal Inch): 0.0470
Item #: 15276553
Brand: Micro 100
Model #: SME-031-2X
Product Specifications
Square End Mills; Mill Diameter (mm): 0.80 ; Mill Diameter (Inch): 1/32 ; Mill Diameter (Decimal Inch): 0.0310 ; Length of Cut (mm): 1.2000 ; Length of Cut (Inch): 3/64 ; Length of Cut (Decimal Inch): 0.0470
| Mill Diameter (mm) | 0.80 |
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0310 |
| Length of Cut (mm) | 1.2000 |
| Length of Cut (Inch) | 3/64 |
| Length of Cut (Decimal Inch) | 0.0470 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 1/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.50000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Series/List | End Mills - Square - 2 Flute - Stub & Standard - Miniature |
