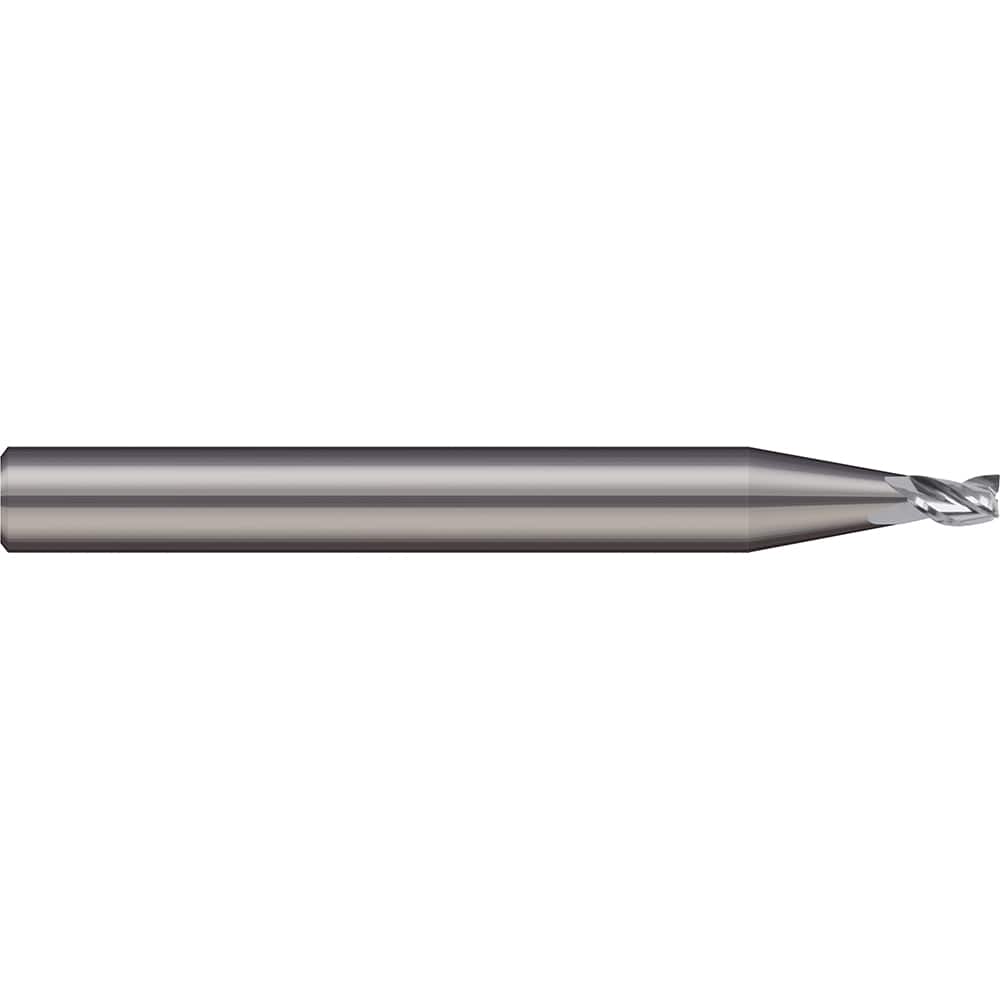

Square End Mill: 3/64'' Dia, 0.071'' LOC, 1/8'' Shank Dia, 1-1/2'' OAL, 2 Flutes, Solid Carbide Single End, Uncoated, 20 ° Helix, Centercutting, RH Cut, RH Flute
Item #: 15274921
Brand: Micro 100
Model #: MEF-047-071
Product Specifications
| Mill Diameter (Inch) | 3/64 |
| Mill Diameter (Decimal Inch) | 0.0469 |
| Number Of Flutes | 2 |
| Length of Cut (mm) | 1.80 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 1-1/2 |
| Helix Angle | 20 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.0000 - 0.1000 |
| Length of Cut (Decimal Inch) | 0.0710 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Helix Style | Medium |
