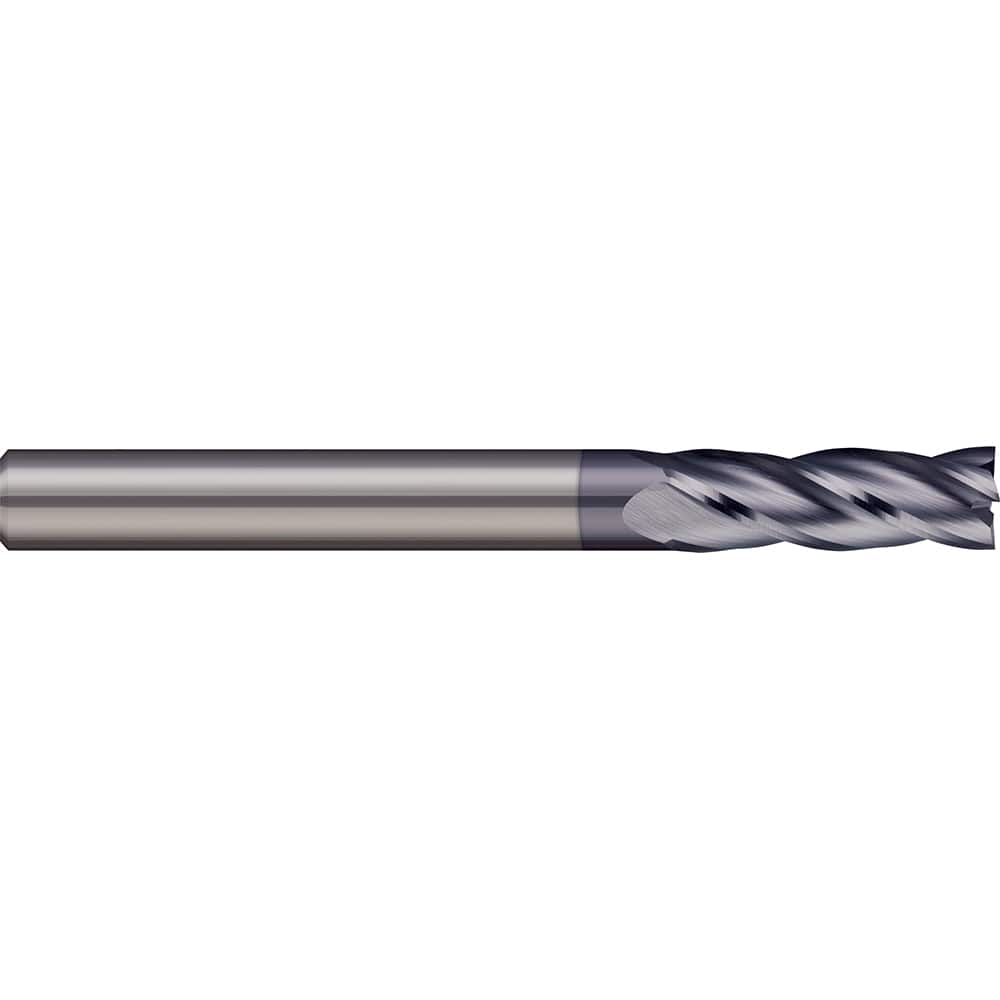

Micro 100 - Square End Mills; Mill Diameter (Inch): 11/64 ; Mill Diameter (Decimal Inch): 0.1719 ; Length of Cut (Inch): 5/8 ; Length of Cut (Decimal Inch): 0.6250 ; Material: Solid Carbide ; Finish/Coating: AlTiN
Item #: 15270002
Brand: Micro 100
Model #: GEM-171-2X
Product Specifications
Square End Mills; Mill Diameter (Inch): 11/64 ; Mill Diameter (Decimal Inch): 0.1719 ; Length of Cut (Inch): 5/8 ; Length of Cut (Decimal Inch): 0.6250 ; Material: Solid Carbide ; Finish/Coating: AlTiN
| Mill Diameter (Inch) | 11/64 |
| Mill Diameter (Decimal Inch) | 0.1719 |
| Length of Cut (Inch) | 5/8 |
| Length of Cut (Decimal Inch) | 0.6250 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (Inch) | 3/16 |
| Single or Double End | Single |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.00000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Series/List | End Mills - Square - 2, 3, 4 Flute |
