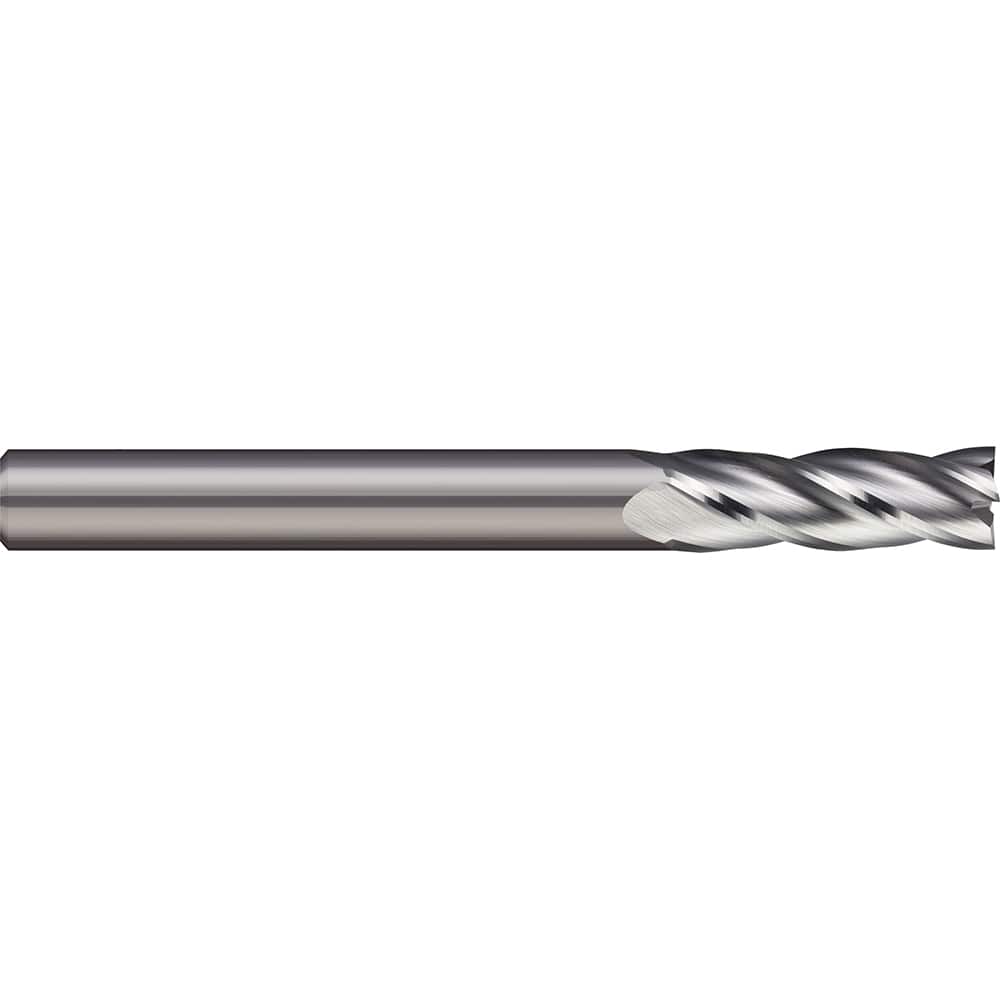

Micro 100 - Square End Mills; Mill Diameter (Inch): 5/32 ; Mill Diameter (Decimal Inch): 0.1562 ; Length of Cut (Decimal Inch): 0.5630 ; Material: Solid Carbide ; Finish/Coating: Uncoated ; Shank Diameter (Inch): 3/16
Item #: 15267396
Brand: Micro 100
Model #: GEM-156-3
Product Specifications
Square End Mills; Mill Diameter (Inch): 5/32 ; Mill Diameter (Decimal Inch): 0.1562 ; Length of Cut (Decimal Inch): 0.5630 ; Material: Solid Carbide ; Finish/Coating: Uncoated ; Shank Diameter (Inch): 3/16
| Mill Diameter (Inch) | 5/32 |
| Mill Diameter (Decimal Inch) | 0.1562 |
| Length of Cut (Decimal Inch) | 0.5630 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 3/16 |
| Single or Double End | Single |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.00000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Series/List | End Mills - Square - 2, 3, 4 Flute |
