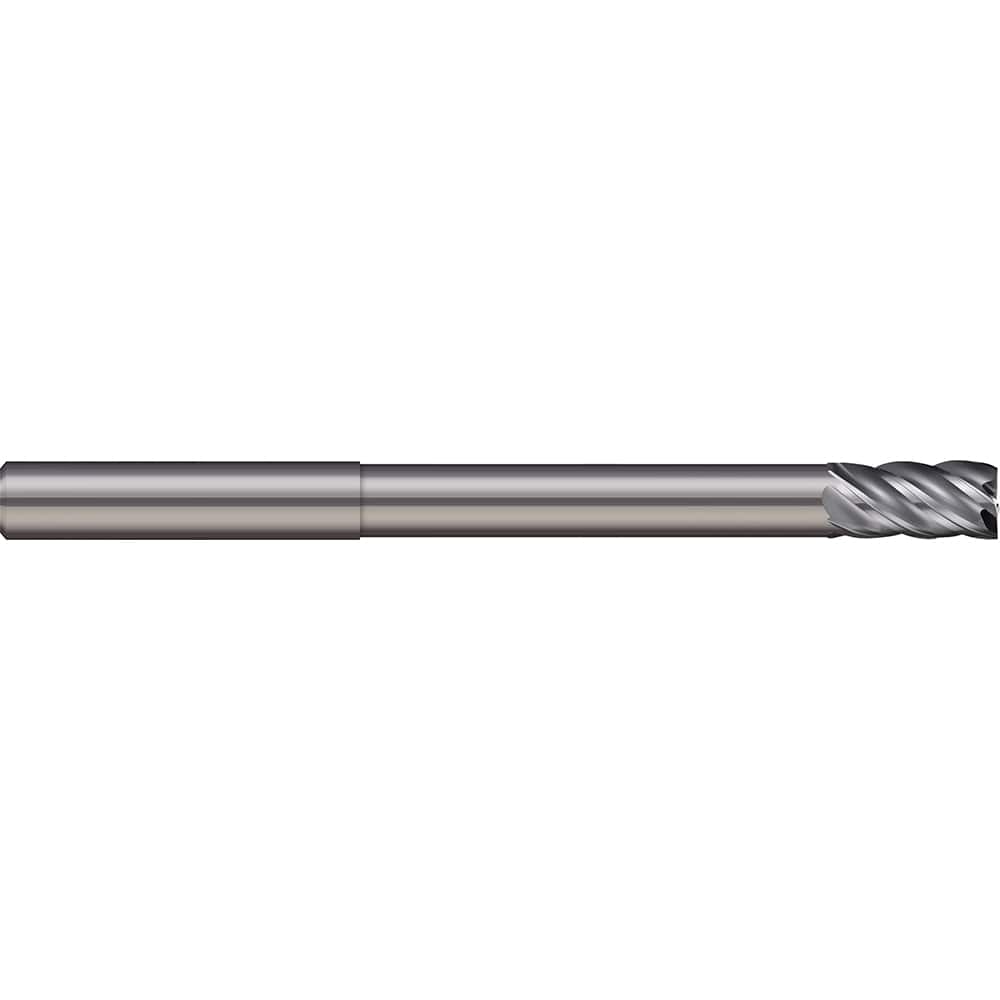

Square End Mill: 3/8'' Dia, 3/4'' LOC, 3/8'' Shank Dia, 4'' OAL, 5 Flutes, Solid Carbide Single End, Uncoated, 38 ° Variable Helix, Centercutting, RH Cut, RH Flute
Item #: 15266448
Brand: Micro 100
Model #: VLR-375-5
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 3/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 4 |
| Helix Angle | 38 |
| Variable Helix | Yes |
| Variable Index | No |
| Extended Reach | Yes |
| Length Of Cut Range (Decimal Inch) | 0.7000 - 0.8000 |
| Shank Type | Weldon Flat |
| Length of Cut (Decimal Inch) | 0.7500 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Helix Style | Medium |
| Reach Length (Inch) | 2-3/4 |
| Reach Length (Decimal Inch) | 2.7500 |
