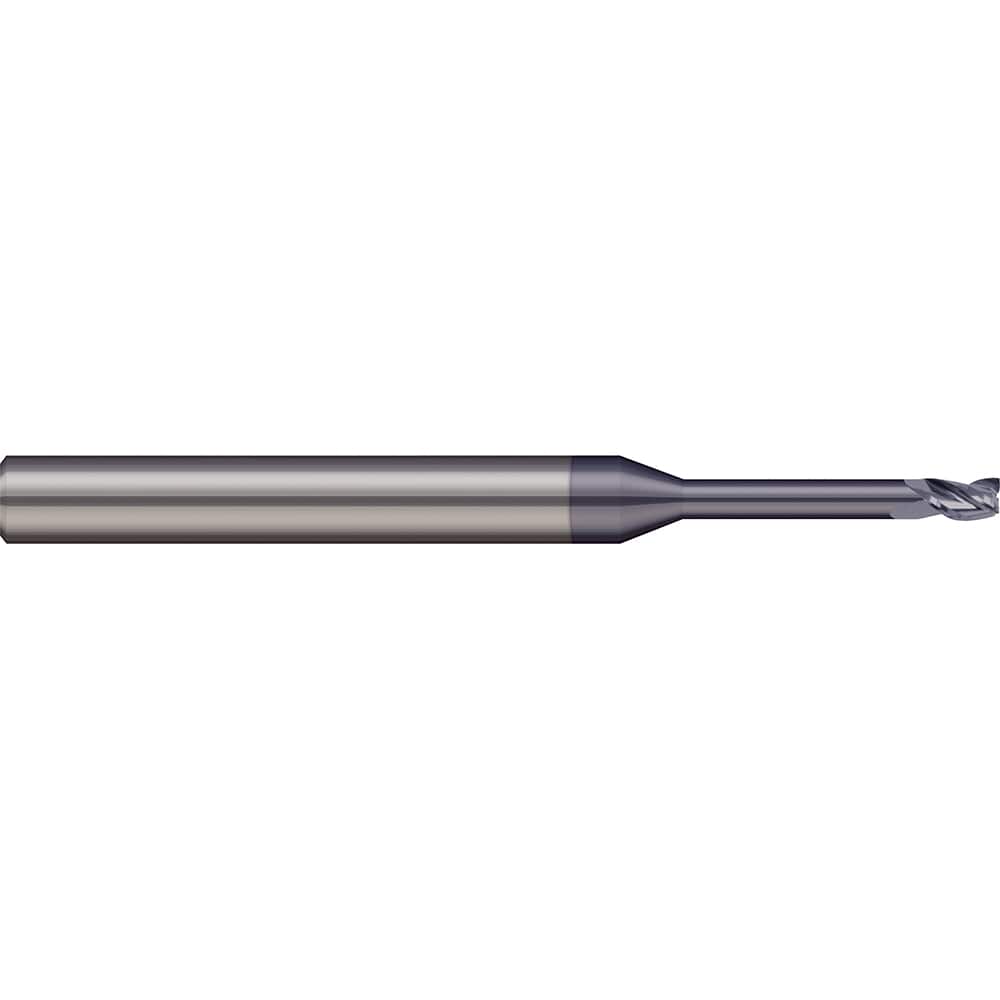

Square End Mill: 3/16'' Dia, 13/64'' LOC, 1/4'' Shank Dia, 3'' OAL, 2 Flutes, Solid Carbide Single End, nACRo Finish, 20 ° Helix, Centercutting, RH Cut, RH Flute
Item #: 15265366
Brand: Micro 100
Model #: MEF-187-1500K
Product Specifications
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 13/64 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/4 |
| Finish/Coating | nACRo |
| Overall Length (Inch) | 3 |
| Helix Angle | 20 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | Yes |
| Length Of Cut Range (Decimal Inch) | 0.2000 - 0.3000 |
| Length of Cut (Decimal Inch) | 0.2000 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 3.0000 |
| Flute Direction | Right Hand |
| Helix Style | Medium |
| Reach Length (Inch) | 1-1/2 |
| Reach Length (Decimal Inch) | 1.5000 |
