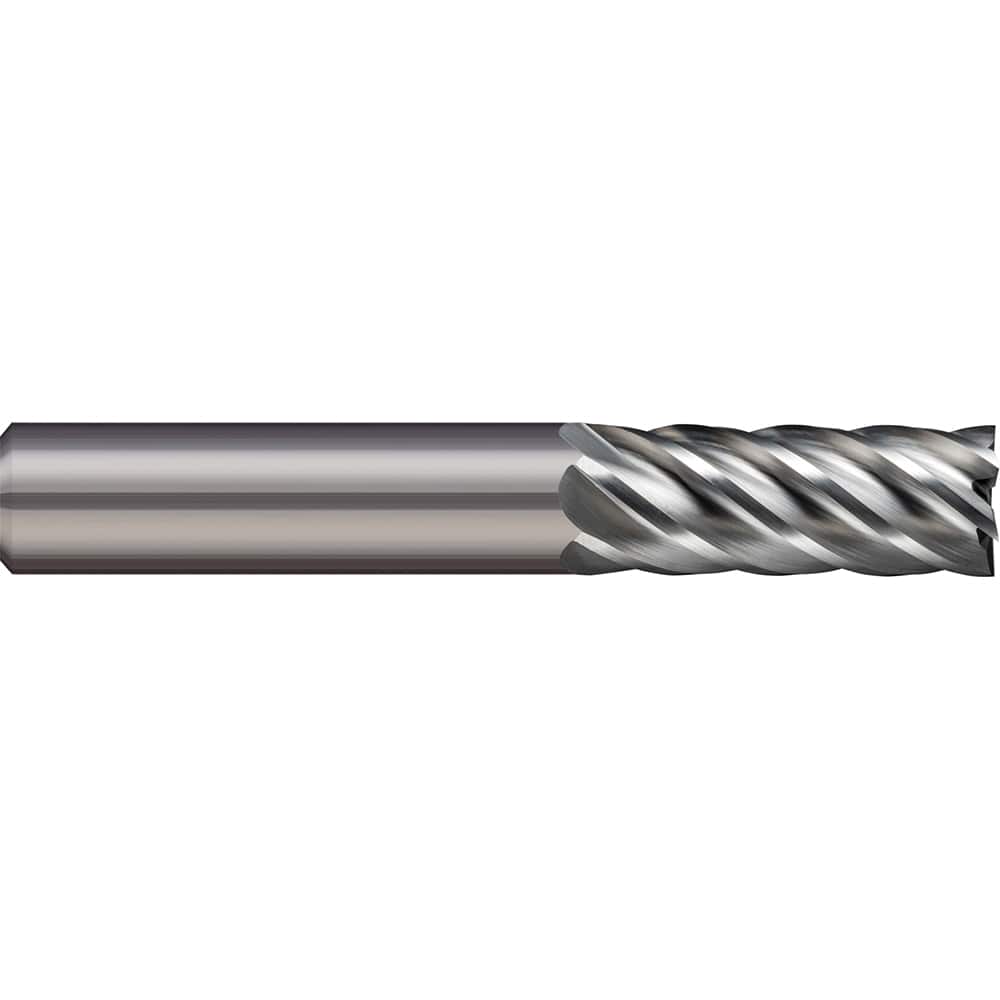

Micro 100 - Square End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; Length of Cut (Inch): 1-1/4 ; Length of Cut (Decimal Inch): 1.2500 ; Material: Solid Carbide ; Finish/Coating: Uncoated
Item #: 15265275
Brand: Micro 100
Model #: EMH-625-06
Product Specifications
Square End Mills; Mill Diameter (Inch): 5/8 ; Mill Diameter (Decimal Inch): 0.6250 ; Length of Cut (Inch): 1-1/4 ; Length of Cut (Decimal Inch): 1.2500 ; Material: Solid Carbide ; Finish/Coating: Uncoated
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 1-1/4 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 5/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 3-1/2 |
| Overall Length (Decimal Inch) | 3.50000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 38 |
| Variable Helix | No |
| Series/List | End Mills for Steels & High Temperature Alloys - Square - 4 & 6 Flute |
