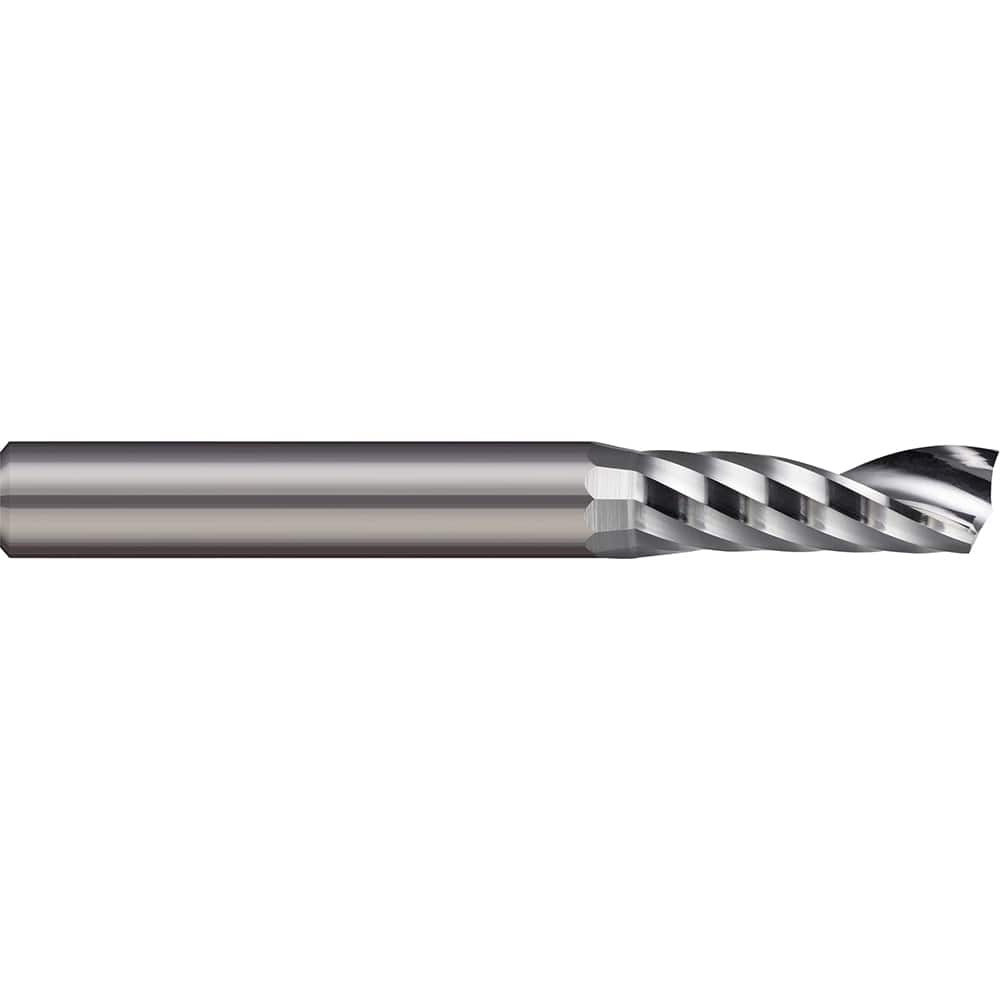

Square End Mill: 0.4724'' Dia, 1.5748'' LOC, 1 Flute, Solid Carbide Single End, Uncoated, Upcut Flute, 30 ° Helix, RH Cut, RH Flute
Item #: 15265184
Brand: Micro 100
Model #: SFAM-120050
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4724 |
| Mill Diameter (mm) | 12.00 |
| Number Of Flutes | 1 |
| Length of Cut (mm) | 40.00 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Finish/Coating | Bright/Uncoated |
| Shank Diameter (mm) | 12.00 |
| Helix Angle | 30 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Overall Length (mm) | 90.00 |
| Length Of Cut Range (Decimal Inch) | 1.5000 - 2.0000 |
| Length of Cut (Decimal Inch) | 1.5748 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Flute Direction | Right Hand |
| Flute Type | Upcut |
| Helix Style | Medium |
