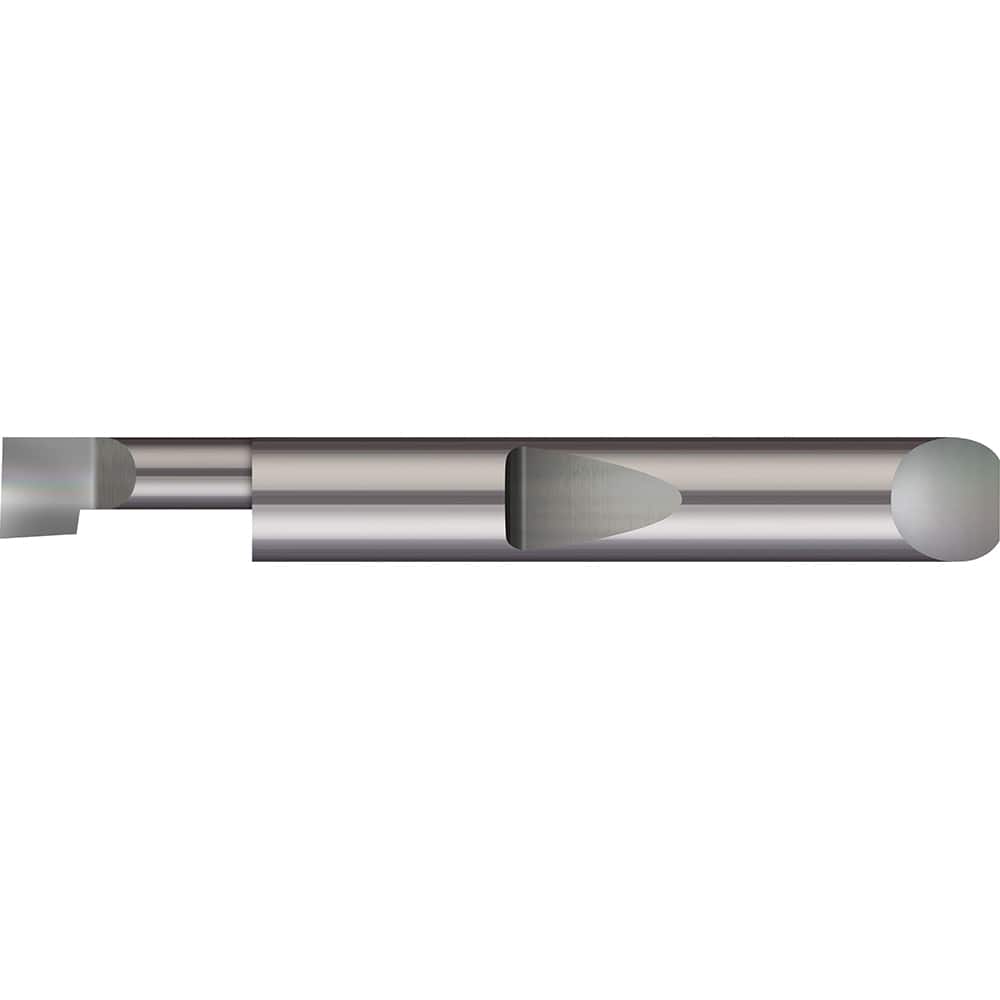

Micro 100 - Boring Bars; Minimum Bore Diameter (Decimal Inch): 0.2300 ; Maximum Bore Depth (Decimal Inch): 1.5000 ; Maximum Bore Depth (Inch): 1-1/2 ; Material: Solid Carbide ; Boring Bar Type: Boring ; Shank Diameter (Decimal Inch): 0.3125
Item #: 15252877
Brand: Micro 100
Model #: QBB-2301500-000
Product Specifications
Boring Bars; Minimum Bore Diameter (Decimal Inch): 0.2300 ; Maximum Bore Depth (Decimal Inch): 1.5000 ; Maximum Bore Depth (Inch): 1-1/2 ; Material: Solid Carbide ; Boring Bar Type: Boring ; Shank Diameter (Decimal Inch): 0.3125
| Minimum Bore Diameter (Decimal Inch) | 0.2300 |
| Maximum Bore Depth (Decimal Inch) | 1.5000 |
| Maximum Bore Depth (Inch) | 1-1/2 |
| Material | Solid Carbide |
| Boring Bar Type | Boring |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Decimal Inch) | 3.00000 |
| Overall Length (Inch) | 3 |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
