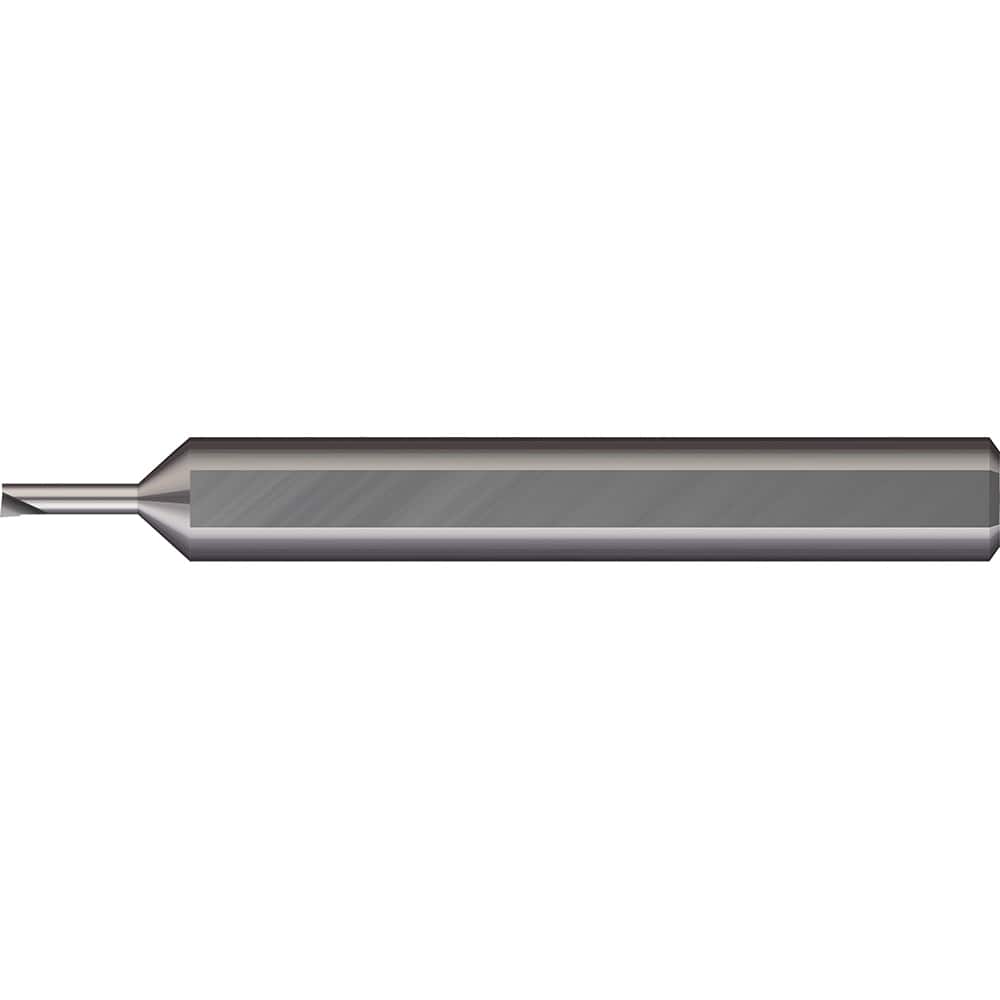

Micro 100 - Boring Bars; Minimum Bore Diameter (Decimal Inch): 0.0625 ; Minimum Bore Diameter (Inch): 1/16 ; Maximum Bore Depth (Decimal Inch): 0.2000 ; Material: Solid Carbide ; Boring Bar Type: Micro Boring ; Shank Diameter (Decimal Inch): 0.1250
Item #: 15252026
Brand: Micro 100
Model #: MBB-070200
Product Specifications
Boring Bars; Minimum Bore Diameter (Decimal Inch): 0.0625 ; Minimum Bore Diameter (Inch): 1/16 ; Maximum Bore Depth (Decimal Inch): 0.2000 ; Material: Solid Carbide ; Boring Bar Type: Micro Boring ; Shank Diameter (Decimal Inch): 0.1250
| Minimum Bore Diameter (Decimal Inch) | 0.0625 |
| Minimum Bore Diameter (Inch) | 1/16 |
| Maximum Bore Depth (Decimal Inch) | 0.2000 |
| Material | Solid Carbide |
| Boring Bar Type | Micro Boring |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Decimal Inch) | 1.50000 |
| Overall Length (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
