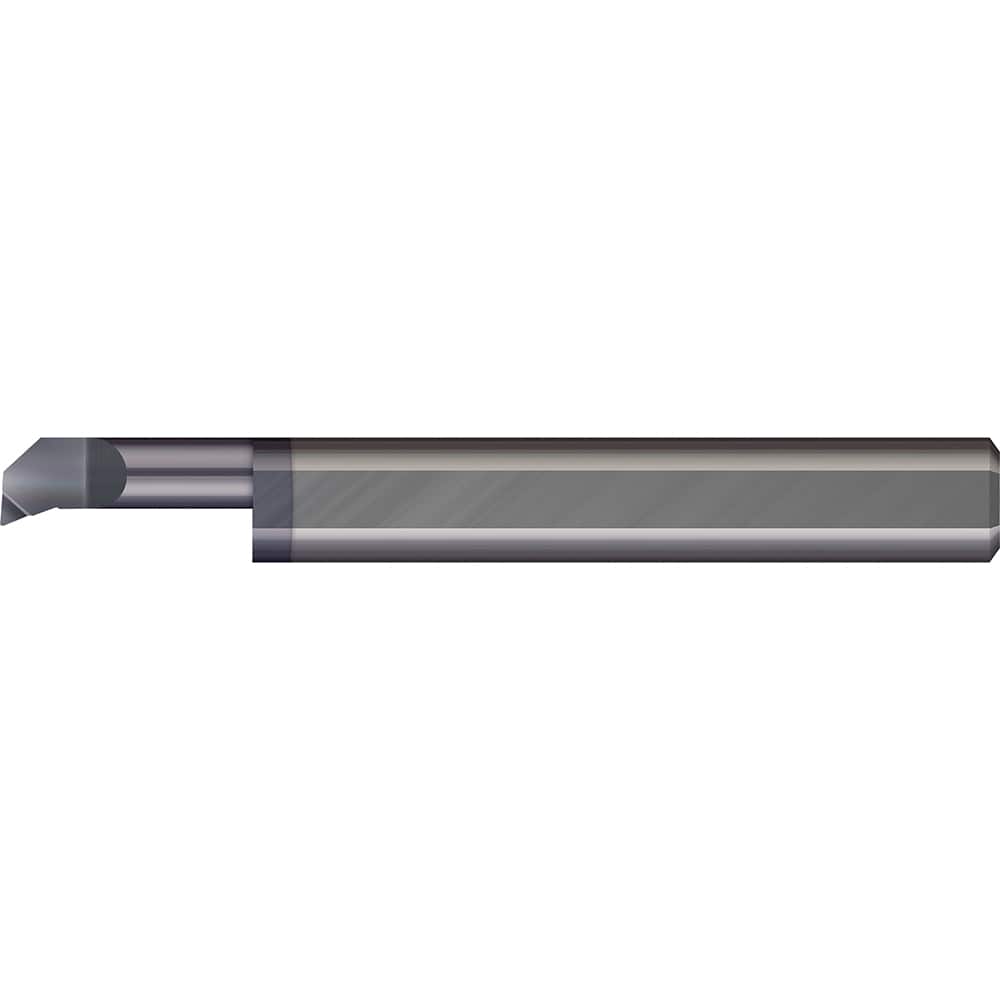

Micro 100 - Boring Bars; Minimum Bore Diameter (Decimal Inch): 0.1600 ; Maximum Bore Depth (Decimal Inch): 0.5000 ; Maximum Bore Depth (Inch): 1/2 ; Material: Solid Carbide ; Boring Bar Type: Boring ; Shank Diameter (Decimal Inch): 0.1875
Item #: 15246523
Brand: Micro 100
Model #: PBT-160500X
Product Specifications
Boring Bars; Minimum Bore Diameter (Decimal Inch): 0.1600 ; Maximum Bore Depth (Decimal Inch): 0.5000 ; Maximum Bore Depth (Inch): 1/2 ; Material: Solid Carbide ; Boring Bar Type: Boring ; Shank Diameter (Decimal Inch): 0.1875
| Minimum Bore Diameter (Decimal Inch) | 0.1600 |
| Maximum Bore Depth (Decimal Inch) | 0.5000 |
| Maximum Bore Depth (Inch) | 1/2 |
| Material | Solid Carbide |
| Boring Bar Type | Boring |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Shank Diameter (Inch) | 3/16 |
| Overall Length (Decimal Inch) | 2.00000 |
| Overall Length (Inch) | 2 |
| Cutting Direction | Right Hand |
| Finish/Coating | AlTiN |
